Commercial Traffic Safety & Parking Management System
AI Summary
Commercial Traffic Safety & Parking Management System is a factory-direct automatic boom barrier gate from Baroxon, built for car park entrances, residential compounds, toll lanes and industrial gates. It opens in a 0.9 s to 6 s adjustable opening time and is rated for a 3 to 10 million cycle MCBF rating with an IP54, IP65 or IP66 housing, which suits outdoor lanes in humid coastal and hot inland climates. Drive options cover 24 V DC brushless, AC 220 V and servo drive options, and boom arms from 1 m to 6 m, with 10 m available spans single-lane car parks through wide industrial gates. Control is through dry contact, relay, Wiegand, RS-485 and TCP/IP, so the unit connects to ANPR/LPR terminals, RFID readers, loop detectors, radar sensors and access control platforms.
Tested Performance Data
Cycle life
Commercial Traffic Safety & Parking Management System. Test condition: Continuous open and close cycling on a bench rig at an ambient temperature of 25 degrees Celsius with a 3 m straight boom arm and no wind load. Measured value: 3, 5 or 10 million MCBF depending on the drive selected. Industry benchmark: Entry-level residential barriers are commonly rated at 1 to 2 million cycles, so the mid and high tiers double to five-fold that service life.
Opening and closing time
Commercial Traffic Safety & Parking Management System. Test condition: Lane test with a 3 m boom, standard control board settings and a 100% duty drive. Measured value: 0.9 s to 6 s adjustable; 0.6 s to 0.9 s on the high-speed models. Industry benchmark: Conventional AC asynchronous barriers of the same arm length typically open in 1.5 s to 6 s, so the high-speed models are roughly 40% to 60% faster.
Duty cycle and daily throughput
Commercial Traffic Safety & Parking Management System. Test condition: Back-to-back cycling at maximum lane frequency without a cooling pause between movements. Measured value: 100% duty cycle, up to 5,000 openings per day. Industry benchmark: Intermittent-duty residential barriers are usually limited to 2,000 to 3,000 openings per day and require a rest period.
Ingress protection
Commercial Traffic Safety & Parking Management System. Test condition: Water and dust test on the assembled housing with the door closed and the cable gland sealed. Measured value: IP54, IP65 or IP66 depending on the model. Industry benchmark: IP44 is the common rating for light-duty barriers, so IP65 and IP66 units tolerate direct hose-down and wind-driven rain at exposed lanes.
Power consumption
Commercial Traffic Safety & Parking Management System. Test condition: Mains measurement of a complete unit in standby and at peak movement. Measured value: 140 W peak and under 5 W in standby. Industry benchmark: A standby load below 5 W is roughly one twentieth of the consumption of an equivalent unit left with the control board fully energised, which matters where power is metered per lane.
Figures describe the value measured under the stated condition and the reference range normally quoted for this class of equipment. Actual lane performance depends on arm length, drive type, wind load and site temperature; ask the Baroxon engineering team for the test sheet of the exact model you are specifying.
Classification :
PRODUCT DETAILS
Key Attributes
| Type | Card, Code, Key, Smartphone, Other | Special Features | Anti-Theft, Built-In Siren, Motion Detection, Night Vision, One-Way Audio, Time & Attendance, Other |
| Storage | Cloud, Memory Card | Material | Cold Rolled Steel |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
Packaging and Delivery
| Selling Units | Single item |
User-friendly interface featuring an integrated motherboard designed for seamless operational control and secure access management.
Modular architectural design ensures efficient installation and reduced maintenance for your automatic boom barrier systems.
Engineered with a high-performance DC brushless motor and variable frequency conversion technology for quiet, smooth, and reliable operation in any intelligent vehicle access control lane.
Enhanced safety protection suite includes advanced anti-collision sensing, auto-rebound logic, and emergency manual release functions.
Versatile applications include contactless RFID integration, turnstile speed gates, pedestrian flow management, and high-efficiency parking revenue control systems.
Usage Scenarios: Commercial Shopping Malls, Corporate Office Complexes, Hospitality & Resorts, Exhibition Centers, Luxury Residential Communities, Private Estates, Condominiums, Industrial Logistics Parks, Warehouse Facilities, Port Terminals, Construction Sites, Public Infrastructure, Airports & Transit Hubs, Healthcare Facilities, Government Campuses, Educational Institutions, Sports Stadiums, and Highway Toll Plazas.
Product Demonstration & Testing Videos
Watch our industrial-grade automatic drop arm barriers and electric security boom gates in action below:

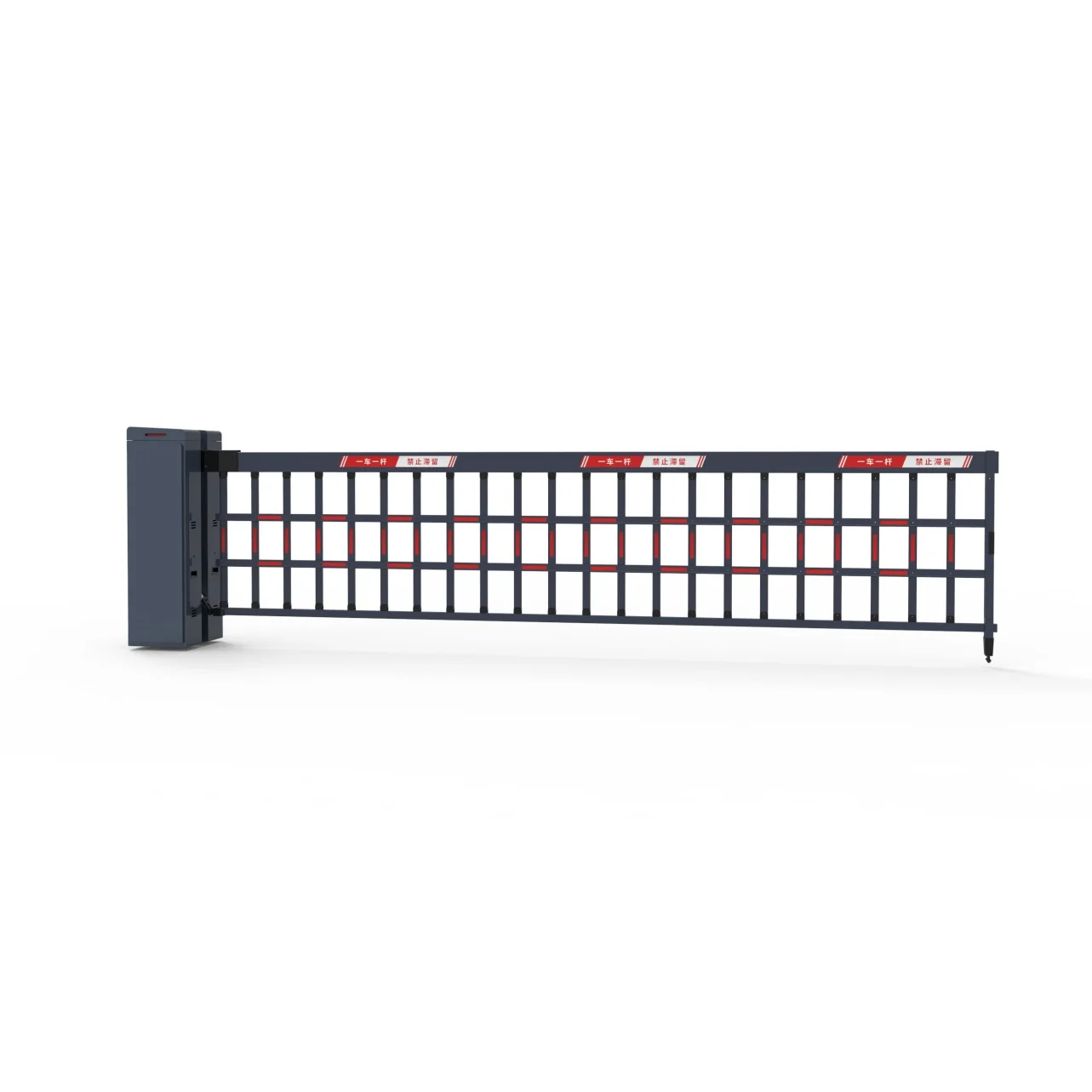

Product Structural Images
About Baroxon - Leading Traffic Barrier Gate Manufacturer
As a premier supplier in the perimeter security and access control industry, Baroxon provides comprehensive engineering and manufacturing for high-traffic vehicle access, commercial security, and intelligent parking lot deployment.
- Strategic Market Positioning: Specialized focus on heavy-duty straight-arm gate operators, multi-tier fence barriers, folding articulated arms, and ANPR/LPR software integration for automated traffic management.
- Global Deployment Footprint: Trusted by toll operators, residential estate developers, and commercial contractors across 200+ countries, including the USA, UK, Canada, and Australia.
- Full-Service Project Support: Delivering end-to-end site assessments, engineering blueprints, hardware installation training, and expert technical consultancy.
- Technological Innovation: Holder of over 100 patents in DC brushless control boards and automated barrier safety systems.

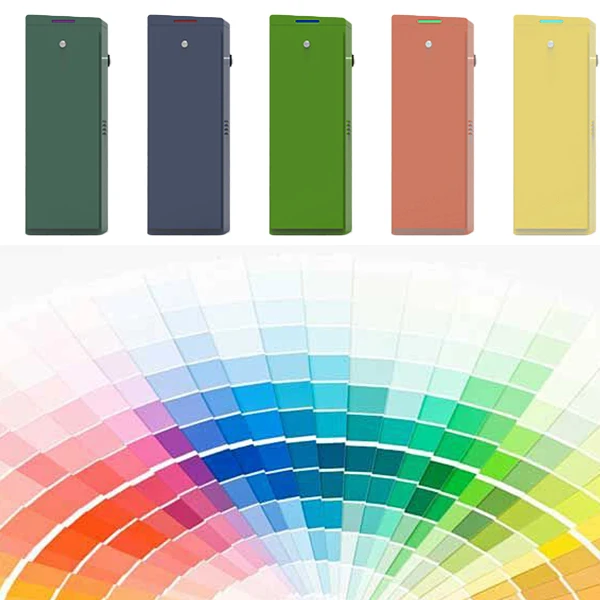

Customization Capabilities & OEM Showrooms
Product Mechanical Advantages

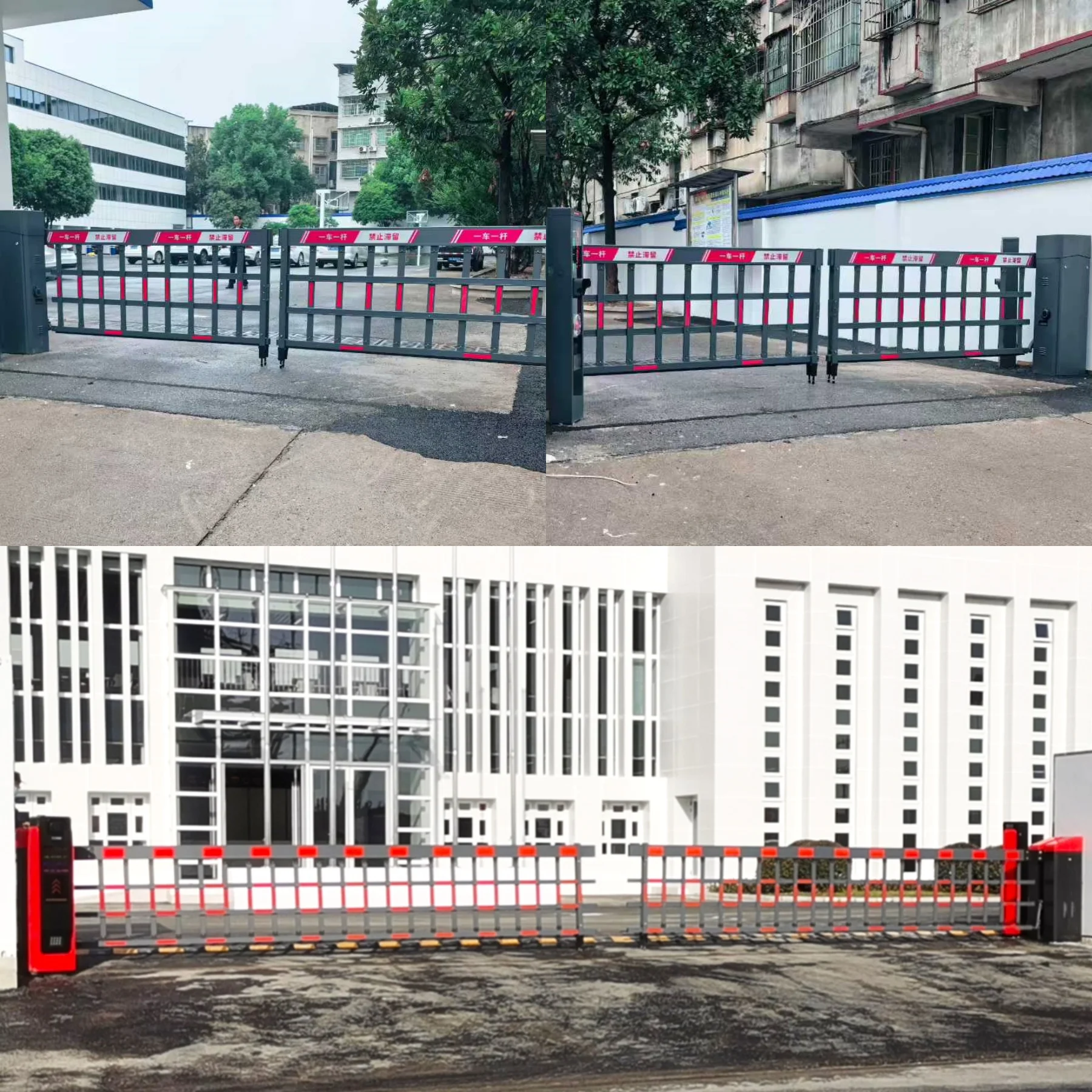

Real-World Project Application Pictures
Advanced Manufacturing Factory & Corporate Overview
Live Traffic Scene Image
Competitive Advantages & Certifications

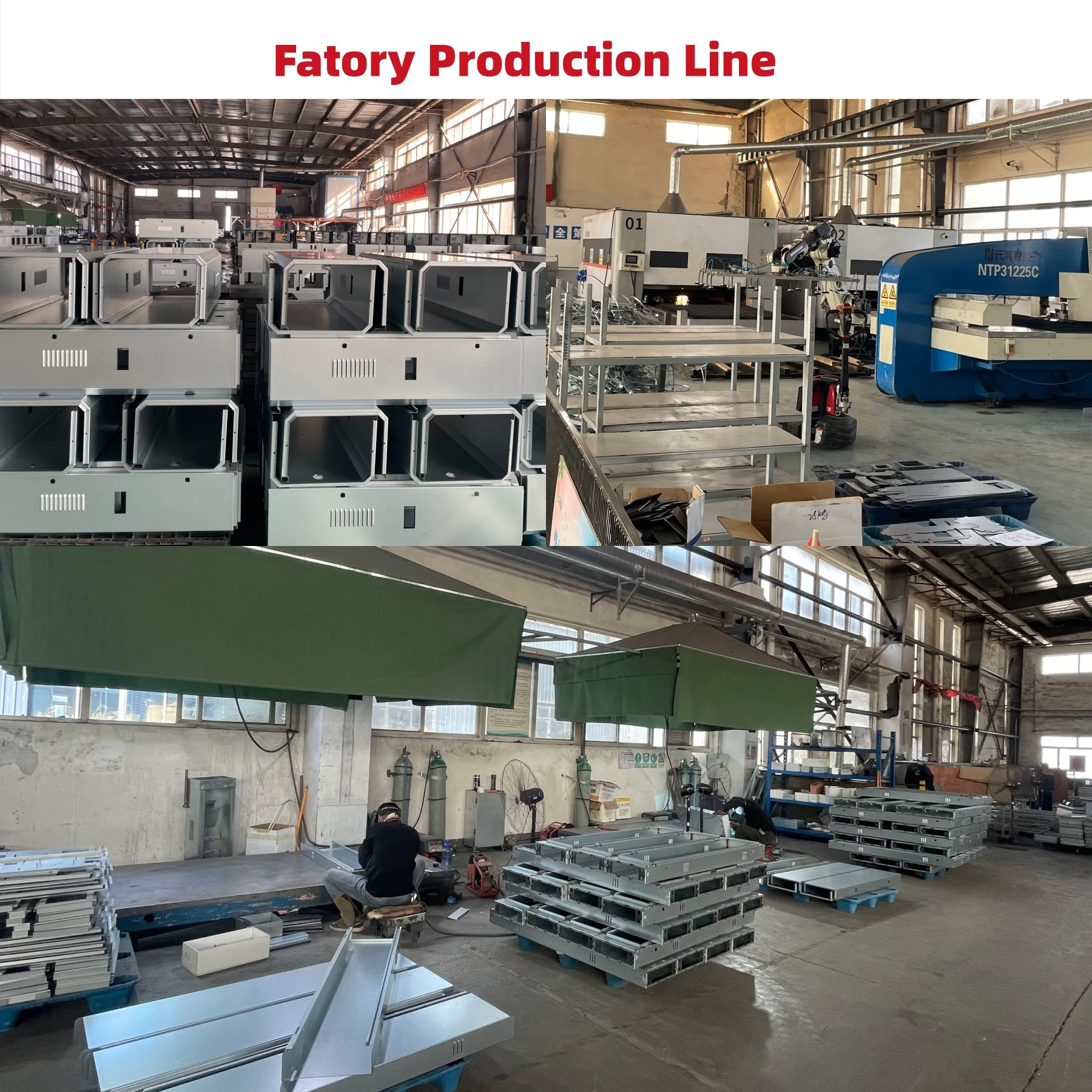

Factory Profile & Extrusion Workshop
Extended Company Profile & Global Logistics
Frequently Asked Questions (FAQs)
Q: What is the opening/closing speed of the barrier?
A: Standard operation ranges from 0.8s to 6s, specifically tailored for high-traffic toll plazas and commercial site management.
Q: Can the gate integrate with LPR or RFID systems?
A: Yes, our systems integrate seamlessly with LPR (License Plate Recognition), RFID proximity cards, and long-range UHF readers.
Q: Is the barrier suitable for outdoor deployment?
A: Absolutely. Our barriers feature IP54-IP66 ratings with robust, UV-resistant powder coatings to endure harsh environmental conditions.
Q: What safety features are provided?
A: We include anti-crash sensing, auto-reverse logic, vehicle loop detector integration, and a manual clutch release for power outages.
Q: What is the expected product lifespan?
A: The core DC brushless motor is engineered for over 5 million operation cycles, ensuring long-term stable performance with minimal maintenance.
Factory Direct Inquiries
Contact Baroxon today for wholesale quotes, project tenders, and custom manufacturing inquiries:
E-mail: [email protected] | WhatsApp: +8613405313100 | WeChat: +86 18660196023
