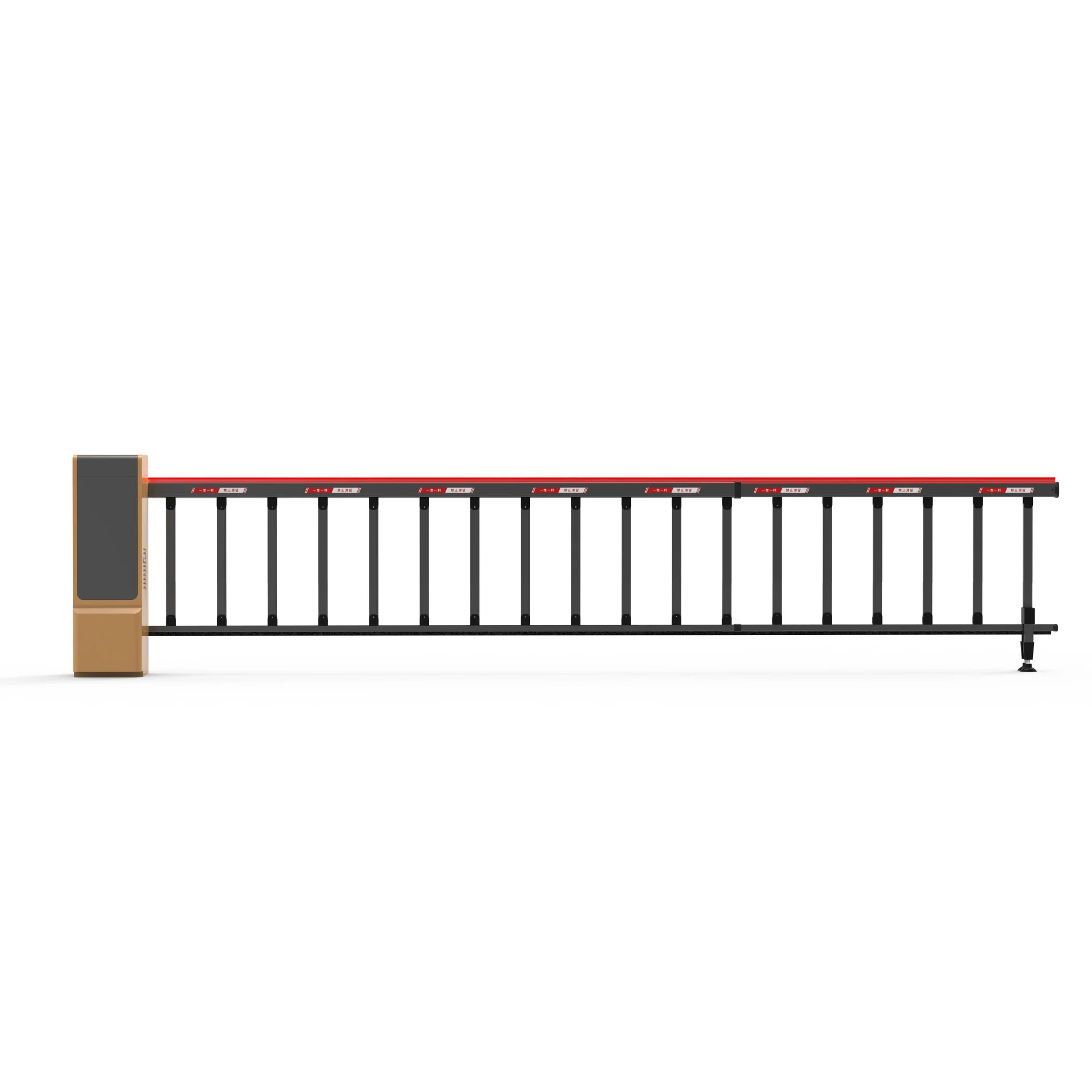

Weatherproof DC Brushless Barrier Gate
AI Summary
Weatherproof DC Brushless Barrier Gate is a factory-direct automatic boom barrier gate from Baroxon, built for car park entrances, residential compounds, toll lanes and industrial gates. It opens in a 0.9 s to 6 s adjustable opening time and is rated for a 3 to 10 million cycle MCBF rating with an IP54, IP65 or IP66 housing, which suits outdoor lanes in humid coastal and hot inland climates. Drive options cover 24 V DC brushless, AC 220 V and servo drive options, and boom arms from 1 m to 6 m, with 10 m available spans single-lane car parks through wide industrial gates. Control is through dry contact, relay, Wiegand, RS-485 and TCP/IP, so the unit connects to ANPR/LPR terminals, RFID readers, loop detectors, radar sensors and access control platforms.
Tested Performance Data
Cycle life
Weatherproof DC Brushless Barrier Gate. Test condition: Continuous open and close cycling on a bench rig at an ambient temperature of 25 degrees Celsius with a 3 m straight boom arm and no wind load. Measured value: 3, 5 or 10 million MCBF depending on the drive selected. Industry benchmark: Entry-level residential barriers are commonly rated at 1 to 2 million cycles, so the mid and high tiers double to five-fold that service life.
Opening and closing time
Weatherproof DC Brushless Barrier Gate. Test condition: Lane test with a 3 m boom, standard control board settings and a 100% duty drive. Measured value: 0.9 s to 6 s adjustable; 0.6 s to 0.9 s on the high-speed models. Industry benchmark: Conventional AC asynchronous barriers of the same arm length typically open in 1.5 s to 6 s, so the high-speed models are roughly 40% to 60% faster.
Duty cycle and daily throughput
Weatherproof DC Brushless Barrier Gate. Test condition: Back-to-back cycling at maximum lane frequency without a cooling pause between movements. Measured value: 100% duty cycle, up to 5,000 openings per day. Industry benchmark: Intermittent-duty residential barriers are usually limited to 2,000 to 3,000 openings per day and require a rest period.
Ingress protection
Weatherproof DC Brushless Barrier Gate. Test condition: Water and dust test on the assembled housing with the door closed and the cable gland sealed. Measured value: IP54, IP65 or IP66 depending on the model. Industry benchmark: IP44 is the common rating for light-duty barriers, so IP65 and IP66 units tolerate direct hose-down and wind-driven rain at exposed lanes.
Power consumption
Weatherproof DC Brushless Barrier Gate. Test condition: Mains measurement of a complete unit in standby and at peak movement. Measured value: 140 W peak and under 5 W in standby. Industry benchmark: A standby load below 5 W is roughly one twentieth of the consumption of an equivalent unit left with the control board fully energised, which matters where power is metered per lane.
Figures describe the value measured under the stated condition and the reference range normally quoted for this class of equipment. Actual lane performance depends on arm length, drive type, wind load and site temperature; ask the Baroxon engineering team for the test sheet of the exact model you are specifying.
Classification :
PRODUCT DETAILS
Key Attributes
| Type | Card, Code, Key, Smartphone, Other | Special Features | Anti-Theft, Built-In Siren, Motion Detection, Night Vision, One-Way Audio, Time & Attendance, Other |
| Storage | Cloud, Memory Card | Material | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
Packaging and Delivery
| Selling Units | Single item |
This enterprise-grade security barrier features a user-friendly interface with an integrated motherboard for reliable and efficient operational control.
Our modular engineering ensures simplified installation and low-maintenance upkeep for your automatic boom barrier systems.
Engineered with a high-performance DC brushless motor and variable frequency conversion technology, it ensures fluid, accurate, and whisper-quiet operation in any smart vehicle access control environment.
Equipped with intelligent safety protocols, including anti-collision sensing, auto-rebound mechanics, and a secure power-off lifting feature.
Engineered for versatility, it supports seamless integration with contactless RFID readers, pedestrian swing gates, high-speed turnstiles, and comprehensive vehicle loop detector parking management systems.

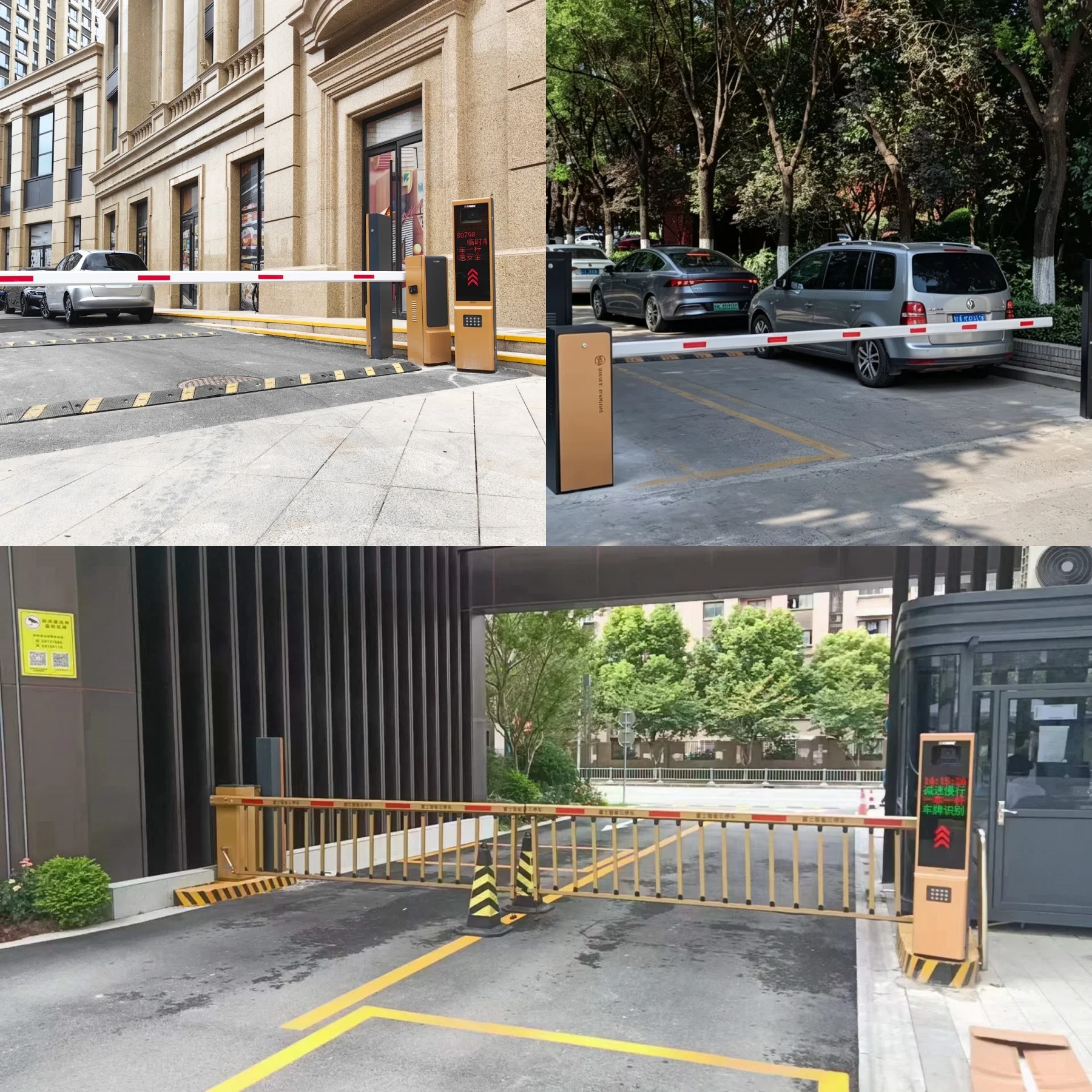

Usage scenarios include: Commercial Shopping Malls, Corporate Business Centers, Luxury Hotels & Resorts, Exhibition Halls, Gated Residential Communities, Private Estates, Industrial Logistics Parks, Warehouse Facilities, Port Terminals, Construction Sites, Public Infrastructure, Transport Hubs, Hospitals, Government Buildings, Educational Campuses, Sports Stadiums, and Highway Toll Collections.
Product Demonstration & Testing Videos
Watch our industrial-grade automated security barriers and electric boom gates in action:
Product Structural Images
About Baroxon - Leading Traffic Barrier Gate Manufacturer
As a premier supplier in the perimeter security and access control industry, Baroxon offers full turnkey engineering and manufacturing capabilities for vehicle access control, commercial entry security, and intelligent parking lot deployment.
Strategic Market Positioning: Expert focus on heavy-duty straight-arm gate operators, multi-tier fence barrier gates, folding arm barriers, and ANPR/LPR (License Plate Recognition) software integration.
Global Deployment Footprint: Proudly supplying toll operators, residential estate developers, and commercial contractors across 200+ countries, including the United States, United Kingdom, Canada, and Australia.
Full-Service Project Support: Delivering complete perimeter security site assessments, system design blueprints, hardware installation training, and one-stop technical consultation.
Structural Engineering: Custom-engineered tooling and molds facilitate rapid site deployment, quick installation, and worry-free field maintenance.
Technological Innovation: Extensive IP portfolio with over 100 patents covering DC brushless control boards and barrier safety systems.
Professional R&D Team: Core technical teams boast over 20 years of in-depth industrial access control manufacturing experience.
Service Commitment: Instant initial response, 2-hour technical issue processing, and rapid 2-day resolution cycles.
Customization & Manufacturing Overview
Frequently Asked Questions (FAQs)
Q: What are the typical operation speeds?
A: Standard operation speeds range from 0.8s to 6s, specifically tailored for diverse environments from private estates to busy highway toll plazas.
Q: Is the power supply system flexible?
A: Yes, we support AC 110V/220V inputs, with optional DC solar-powered solutions for remote or off-grid security sites.
Q: Does the system integrate with license plate recognition?
A: Absolutely, our hardware is fully compatible with LPR/ANPR cameras, RFID scanners, QR code readers, and UHF long-range systems.
Q: Are these units rated for outdoor weather conditions?
A: Yes, all units feature IP54-IP66 ingress protection and advanced UV-resistant powder coatings to withstand extreme climates.
Q: What safety features ensure vehicle protection?
A: Systems include anti-crash sensing, auto-rebound logic, loop detector support, and a manual emergency clutch release for power failure safety.
Q: What is the mechanical lifespan of the barrier gate?
A: Our DC brushless motor and mechanical core are engineered for over 5 million cycles, requiring zero routine maintenance.
