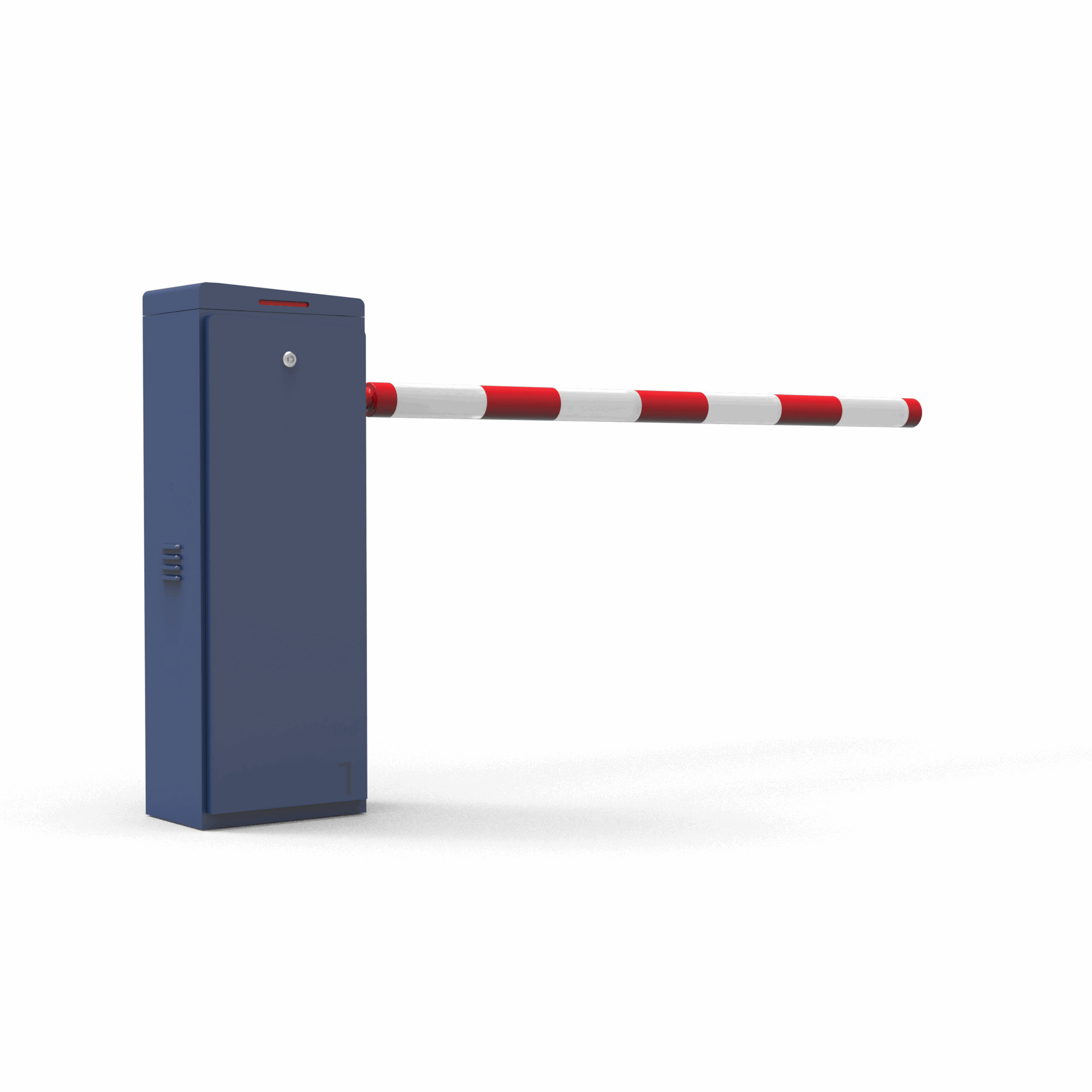

Intelligent ANPR Automatic Boom Barrier Gate System
AI Summary
Intelligent ANPR Automatic Boom Barrier Gate System is a factory-direct long-range UHF RFID vehicle access control barrier from Baroxon, built for gated communities, staff car parks and fleet yards. It opens in hands-free passage without stopping to present a credential and is rated for maintenance-free reading with no moving parts in the reader with an IP65 or IP66 outdoor reader, which suits outdoor lanes in humid coastal and hot inland climates. Drive options cover 860 to 960 MHz UHF long-range reading technology, and a 3 m to 12 m adjustable reading distance spans single-lane car parks through wide industrial gates. Control is through Wiegand, RS-485, TCP/IP and a direct relay trigger, so the unit connects to ANPR/LPR terminals, RFID readers, loop detectors, radar sensors and access control platforms. Power draw is low-voltage reader power from the control room with anti-passback and driver-pass logging built in.
Tested Performance Data
Reading distance
Intelligent ANPR Automatic Boom Barrier Gate System. Test condition: Open-air test with a windshield tag and a fixed antenna position. Measured value: 3 m to 12 m adjustable by antenna and tag selection. Industry benchmark: Short-range proximity readers used for vehicle access typically work at 10 cm to 50 cm, which forces the driver to stop and hold a card to the reader.
Passage throughput
Intelligent ANPR Automatic Boom Barrier Gate System. Test condition: Lane test with vehicles approaching at normal compound entry speed. Measured value: Hands-free reading without the driver stopping to present a credential. Industry benchmark: Stop-and-present card lanes add several seconds per vehicle, which is the main cause of queuing at compound entrances.
Reader durability
Intelligent ANPR Automatic Boom Barrier Gate System. Test condition: Continuous reading test with no scheduled maintenance interval. Measured value: A solid-state reader with no moving parts to wear out. Industry benchmark: Motorised or mechanical credential readers introduce wearing parts that require periodic service.
Ingress protection
Intelligent ANPR Automatic Boom Barrier Gate System. Test condition: Outdoor weather test at an exposed pillar position. Measured value: IP65 or IP66 outdoor reader. Industry benchmark: Indoor-rated readers are commonly IP54 and are not suitable for exposed pillar mounting.
Access control logic
Intelligent ANPR Automatic Boom Barrier Gate System. Test condition: Test of anti-passback and driver logging against the access control platform. Measured value: Anti-passback and driver-pass logging are built in. Industry benchmark: Basic readers without anti-passback allow one tag to be reused to open the same lane twice, which is difficult to reconcile in fleet reporting.
Figures describe the value measured under the stated condition and the reference range normally quoted for this class of equipment. Actual lane performance depends on arm length, drive type, wind load and site temperature; ask the Baroxon engineering team for the test sheet of the exact model you are specifying.
Classification :
PRODUCT DETAILS
Main Attributes & Technical Specifications for Industrial Access
| Type | RFID Card. Code. Key. Smartphone. Others | Special Features | Anti-Theft. Built-in Siren. Motion Detection. Night Vision. One-Way Audio. Time Attendance. Others |
| Storage | Cloud. Memory Card | Material | Cold Rolled Steel. Stainless Steel. Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Adjustable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF | 3 million / 5 million / 10 million cycles |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR | < 30 minutes |
| Protection Class | IP54 / IP65 / IP66 | ||
Packaging and Logistics
| Sales Unit | Single Item | ||
Intuitive Interface Layout: Built around a highly advanced microprocessor-based core motherboard that ensures plug-and-play loop detector configuration and hassle-free diagnostic readings for automatic car park barrier systems in Saudi Arabia.
Modular Cabinet Architecture: Engineered with a structural space-saving profile that guarantees efficient site deployment and easy replacement operations. This provides high-efficiency deployment for robust parking access systems built to withstand extreme industrial cycles.
Continuous Variable Drive Mechanism: Utilizes a low-inertia brushless DC motor with digital frequency conversion tracking to achieve exceptionally smooth mechanical braking curves, silent transit status, and precise horizontal alignment.
Intelligent Physical Failsafe: Incorporates structural anti-collision arm adapters, active pressure-sensitive auto-rebound modules, and internal mechanical clutches for manual emergency lifting protocols during facility power outages.
Universal Peripheral Compatibility: Seamlessly integrates with proximity smart card readers, heavy-duty pedestrian swing gates, optical speed gates, security perimeter access control barriers, magnetic vehicle detectors, commercial vehicle boom gates, 220v brushless dc motors, and supermarket checkout lane gates.
Extensive Commercial Applications: Optimized for mission-critical access management in multi-level commercial shopping malls, high-rise office buildings, corporate business hubs, major hotels, exhibition complexes, residential properties, private estates, high-density condominiums, industrial production factories, logistics transport corridors, fulfillment warehouses, shipping port terminals, active construction zones, transportation hubs (airports and train stations), medical campus driveways, government agency complexes, school districts, universities, stadium parking, public arenas, and multi-lane highway toll plazas.
Product Demonstration & Testing Videos
Product Structure Visuals
About BAROXON - Leading Traffic Barrier Gate Manufacturer
As a major global supplier in the physical security, asset protection, and perimeter access control sectors, BAROXON provides comprehensive turnkey manufacturing, precision automated machining, and high-volume delivery capabilities for automated lane management, commercial vehicle access control, and smart parking validation ecosystems. Our high-efficiency, maintenance-free commercial parking gate mechanisms ensure rapid vehicle processing, uninterrupted high-volume lane operations, and absolute weather protection under extreme environmental pressure anywhere in the world.
Strategic Market Positioning: Advanced engineering and fabrication for heavy-duty commercial straight arm lane operators, multi-level perimeter fence barrier gates, low-profile articulated folding arms, and sophisticated smart RFID barrier systems software integration.
Global Deployment Footprint: Trusted by multinational toll road operators, real estate infrastructure developers, city authorities, and security integration firms in over 200 countries.
Full-Service Project Support: Providing complete physical site security assessments, technical CAD layout blueprints, peripheral device synchronization training, and direct corporate factory technical consultation.
Convenient Structural Design: Precision-molded structural mechanical units and modular electronics facilitate rapid field installation, fast mechanical calibration, and exceptionally low lifecycle maintenance costs.
Barrier Technology Innovation: Backed by a major intellectual property library containing over 100 core product patents covering digital DC brushless control boards and automated physical safety barrier controls.
Highly Professional Engineering Team: Our automated R&D division and electronics manufacturing supervisors possess over 20 years of real-world experience in perimeter turnstile systems, gate operators, and automated lane hardware.
Uncompromising Service Commitment: Supported by 1-minute instant digital inquiry response, 2-hour expert technical issue diagnostics, and comprehensive 2-day closed-loop resolution management.
OEM Showroom & Customization Capabilities
Product Mechanical Advantages

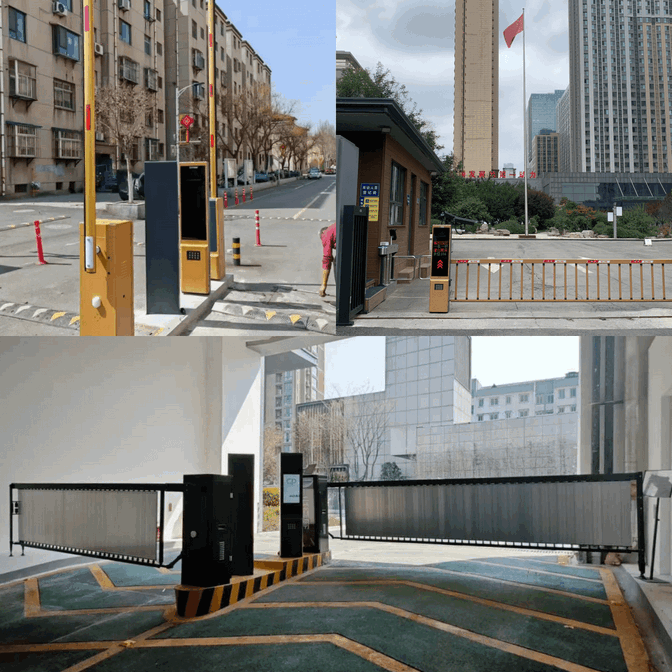

Real-World Project Application Photos
Frequently Asked Questions (FAQ)
Q1: What are the variable speed profiles and cycle ratings?
A: Supports ultra-fast opening/closing speeds of 0.6s / 0.9s / 1.5s - 6s, fully adjustable. Designed with 100% continuous duty cycle, supporting 5000 cycles/day.
Q2: What motor architecture and power configurations are supported?
A: Configurable with industrial-grade 24V Brushless DC motors, AC 220V power assemblies, or high-precision digital Servo Motors. Peak power draw is 140W max, with<5W standby consumption.
Q3: What types of boom arm structures can be installed?
A: Highly versatile, supporting straight aerodynamic profiles, 90°/180° folding articulation for low-ceiling underground garages, and two/three-rail pedestrian control fences across 1m-6m lengths.
Q4: Can this gate operator interface with external access hardware?
A: Yes, the integrated motherboard includes modern dry contact expansion banks, seamlessly integrating with ANPR/LPR tracking nodes, proximity smart cards, smartphone entry keys, vehicle loop detectors, and UHF long-range readers.
Q5: What are the environmental protection and cabinet specifications?
A: Heavy-duty 2.0mm cold-rolled steel housing treated with special multi-layer outdoor powder coating. IP54, IP65, or IP66 protection ratings available, functioning from -30℃ to 80℃.
