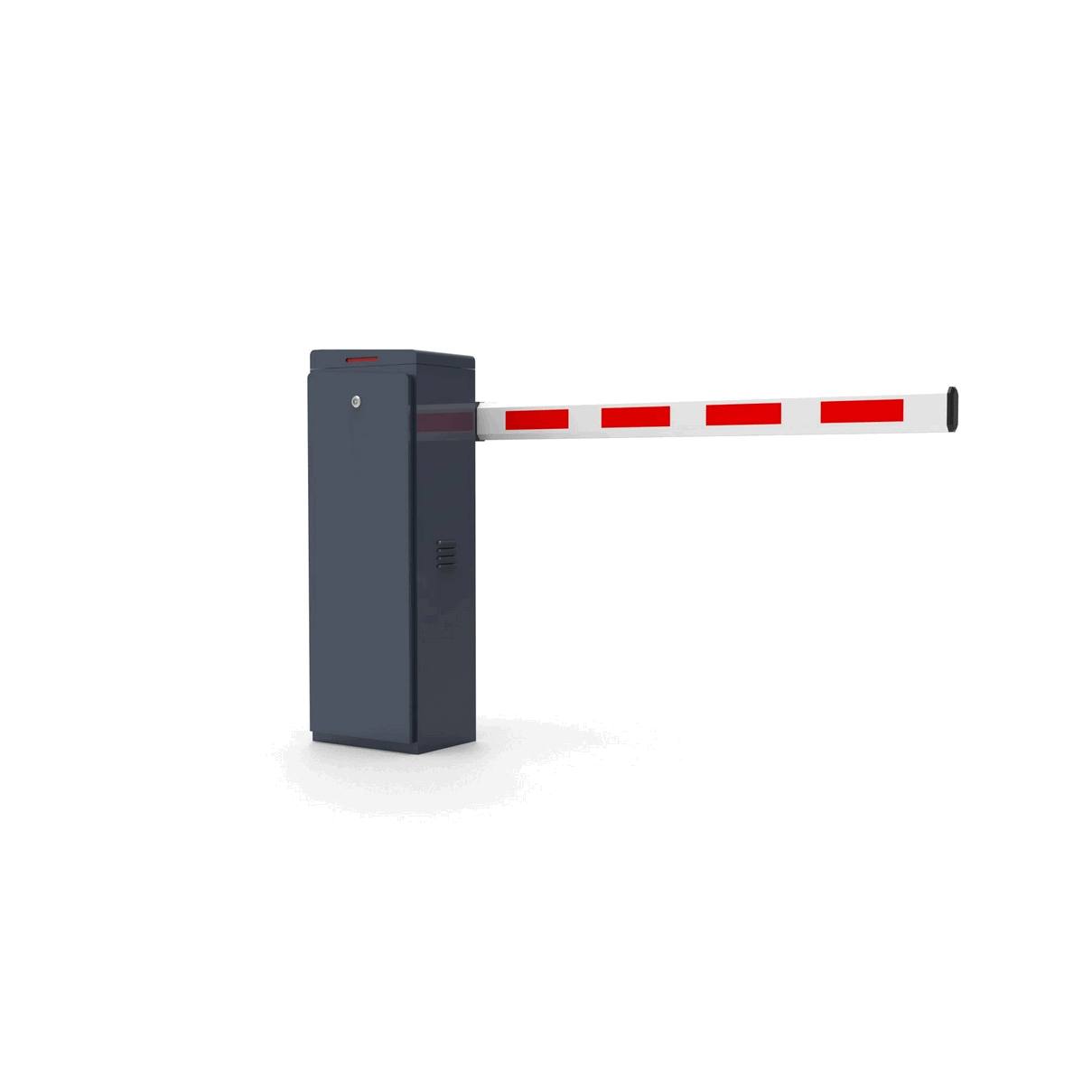

Heavy-Duty Automatic Toll Boom Barrier Gate
AI Summary
Heavy-Duty Automatic Toll Boom Barrier Gate is a factory-direct long-range UHF RFID vehicle access control barrier from Baroxon, built for gated communities, staff car parks and fleet yards. It opens in hands-free passage without stopping to present a credential and is rated for maintenance-free reading with no moving parts in the reader with an IP65 or IP66 outdoor reader, which suits outdoor lanes in humid coastal and hot inland climates. Drive options cover 860 to 960 MHz UHF long-range reading technology, and a 3 m to 12 m adjustable reading distance spans single-lane car parks through wide industrial gates. Control is through Wiegand, RS-485, TCP/IP and a direct relay trigger, so the unit connects to ANPR/LPR terminals, RFID readers, loop detectors, radar sensors and access control platforms. Power draw is low-voltage reader power from the control room with anti-passback and driver-pass logging built in.
Tested Performance Data
Reading distance
Heavy-Duty Automatic Toll Boom Barrier Gate. Test condition: Open-air test with a windshield tag and a fixed antenna position. Measured value: 3 m to 12 m adjustable by antenna and tag selection. Industry benchmark: Short-range proximity readers used for vehicle access typically work at 10 cm to 50 cm, which forces the driver to stop and hold a card to the reader.
Passage throughput
Heavy-Duty Automatic Toll Boom Barrier Gate. Test condition: Lane test with vehicles approaching at normal compound entry speed. Measured value: Hands-free reading without the driver stopping to present a credential. Industry benchmark: Stop-and-present card lanes add several seconds per vehicle, which is the main cause of queuing at compound entrances.
Reader durability
Heavy-Duty Automatic Toll Boom Barrier Gate. Test condition: Continuous reading test with no scheduled maintenance interval. Measured value: A solid-state reader with no moving parts to wear out. Industry benchmark: Motorised or mechanical credential readers introduce wearing parts that require periodic service.
Ingress protection
Heavy-Duty Automatic Toll Boom Barrier Gate. Test condition: Outdoor weather test at an exposed pillar position. Measured value: IP65 or IP66 outdoor reader. Industry benchmark: Indoor-rated readers are commonly IP54 and are not suitable for exposed pillar mounting.
Access control logic
Heavy-Duty Automatic Toll Boom Barrier Gate. Test condition: Test of anti-passback and driver logging against the access control platform. Measured value: Anti-passback and driver-pass logging are built in. Industry benchmark: Basic readers without anti-passback allow one tag to be reused to open the same lane twice, which is difficult to reconcile in fleet reporting.
Figures describe the value measured under the stated condition and the reference range normally quoted for this class of equipment. Actual lane performance depends on arm length, drive type, wind load and site temperature; ask the Baroxon engineering team for the test sheet of the exact model you are specifying.
Classification :
PRODUCT DETAILS
Comprehensive Technical Specification Sheet - Baroxon Smart Barrier Gate Solutions
| Access Modes | RFID Proximity Card, Handset Remote, Mobile Application, UHF Long-Range Tag, ANPR Camera | Safety Features | Anti-Collision Rebound, LED Warning Ring, Inductive Loop Integration, Manual Release Key |
| Data Storage | Cloud Database, On-Board Local Memory | Enclosure Material | Cold-Rolled Steel, Stainless Steel, Heavy-Duty Alloy |
| Place of Origin | Shandong, China | Model Reference | YH-PDPY601 |
| Brand Identity | Baroxon | Drive Mechanism | DC 24V Brushless / AC 220V / Servo Motor Drive |
| Duty Cycle Rating | 100% / Continuous / 5000 cycles per day | Cycle Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Arm Configuration | Straight / Folding (90°/180°) / Fence Arm | Arm Span Length | 1m - 6m (Adjustable) |
| Power Usage | Peak: 140W / Standby:<5W | MCBF Rating | 3 million / 5 million / 10 million cycles |
| Chassis Build | 2.0mm Cold-rolled Steel / Powder Coat | MTTR Benchmark | < 30 minutes |
| Ingress Protection | IP54 / IP65 / IP66 | ||
Logistics and Packaging Details
| Unit Package | Single industrial carton set | Box Dimensions | 104X37X33.5 cm |
| Gross Weight | 40.000 kg | ||
Microprocessor Control Architecture: Built with advanced logic boards supporting fast loop setups and smooth connectivity for automatic car park barrier systems in Saudi Arabia, ensuring high throughput for commercial transit.
Modular Housing Design: Engineered to provide effortless site deployment and low servicing overheads. This robust configuration drives high-performance commercial vehicle boom gates designed to endure humid tropical climates and heavy workloads.
Inertia-Balanced Motor Drive: Utilizes low-noise brushless technology and digital frequency tracking to achieve precise braking, silent operational transit, and accurate arm alignment.
Comprehensive Safety Frameworks: Features physical breakaway couplings, pressure-sensitive auto-reversal modules, and manual release clutches for uninterrupted workflow during grid failures.
Ecosystem Interoperability: Seamlessly integrates with smart access readers, speed turnstiles, optical gates, loop sensors, and specialized smart RFID barrier systems.
Target Environments: Optimized for smart office towers, multi-storey complexes, industrial hubs, residential estates, transport terminals, and heavy-duty toll plazas.
Operational Testing & Demonstration Videos
Structural Component Views
About BAROXON - Global Manufacturer of Smart Traffic Barriers
As a trusted international supplier in perimeter security and asset governance, BAROXON delivers comprehensive manufacturing, precision automated machining, and high-volume distribution for automated lane management and smart parking ecosystems. Our maintenance-free commercial barriers ensure rapid vehicle flow and reliable weather protection under demanding conditions globally.
Strategic Market Footprint: Advanced engineering for heavy-duty commercial straight arm lane operators, multi-level fence gates, folding arms, and RFID barrier integrations.
Global Reach: Trusted by multinational infrastructure developers, municipal authorities, and security system integrators in over 200 countries.
Turnkey Project Support: Providing comprehensive site assessments, technical CAD blueprints, synchronization training, and direct factory consultation.
Efficient Structural Design: Precision-molded mechanical assemblies and modular electronics facilitate rapid site installation and minimal maintenance overheads.
Technological Innovation: Backed by an intellectual property portfolio featuring over 100 core patents covering digital brushless DC control systems.
Experienced R&D Team: Our engineering management possesses over 20 years of real-world expertise in perimeter turnstiles and gate hardware.
Service Commitment: Supported by prompt responses, expert technical diagnostics, and robust closed-loop resolution management.
Customization Capabilities & OEM Showroom
Mechanical Advantages

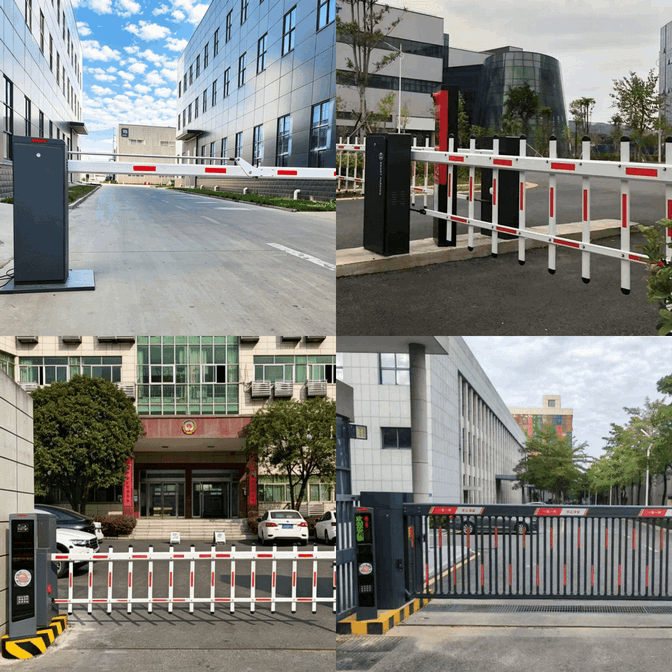

Real-World Project Applications
Advanced Manufacturing Factory & Facility Overview
Live Traffic Deployment Scenarios
Certifications & Advantages
Factory Profile & Extrusion Workshop
Global Logistics & Headquarters
Frequently Asked Questions (FAQ)
Q1: What are the speed options and cycle limits for this barrier series?
A: This operator supports adjustable open/close speeds from 0.6s to 6s. Built with a 100% continuous duty rating, it supports heavy workloads up to 5000 cycles daily for high-speed lanes.
Q2: What motor configurations and power specifications are available?
A: Units can be configured with industrial 24V Brushless DC motors, AC 220V assemblies, or precision Servo Motors. Peak power draw is 140W under load, with standby drawing under 5W.
Q3: Which boom arm styles can be fitted to the housing?
A: The mechanism supports aerodynamic straight arms, 90° or 180° articulated folding arms for low-ceiling basements, and multi-rail fence configurations across 1m to 6m spans.
Q4: Can this gate interface with peripheral access control equipment?
A: Yes, the motherboard includes modern dry contact banks, integrating smoothly with ANPR cameras, proximity card readers, mobile entry apps, and inductive loops.
Q5: What weather protection and cabinet materials are provided?
A: Cabinets are fabricated from 2.0mm cold-rolled steel with multi-layer outdoor powder coatings, offering IP54, IP65, or IP66 ingress protection ratings for extreme environments.
Q6: What is the mechanical reliability and average repair turnaround time?
A: The drive assembly achieves an MCBF of 3 million, 5 million, or 10 million cycles depending on motor choice, with an MTTR of under 30 minutes for quick servicing.
Q7: What safety mechanisms handle obstacles and power outages?
A: The control board triggers immediate auto-reversal loops upon contact. Additionally, units include anti-collision breakaway adapters and mechanical manual clutches for power failure overrides.
