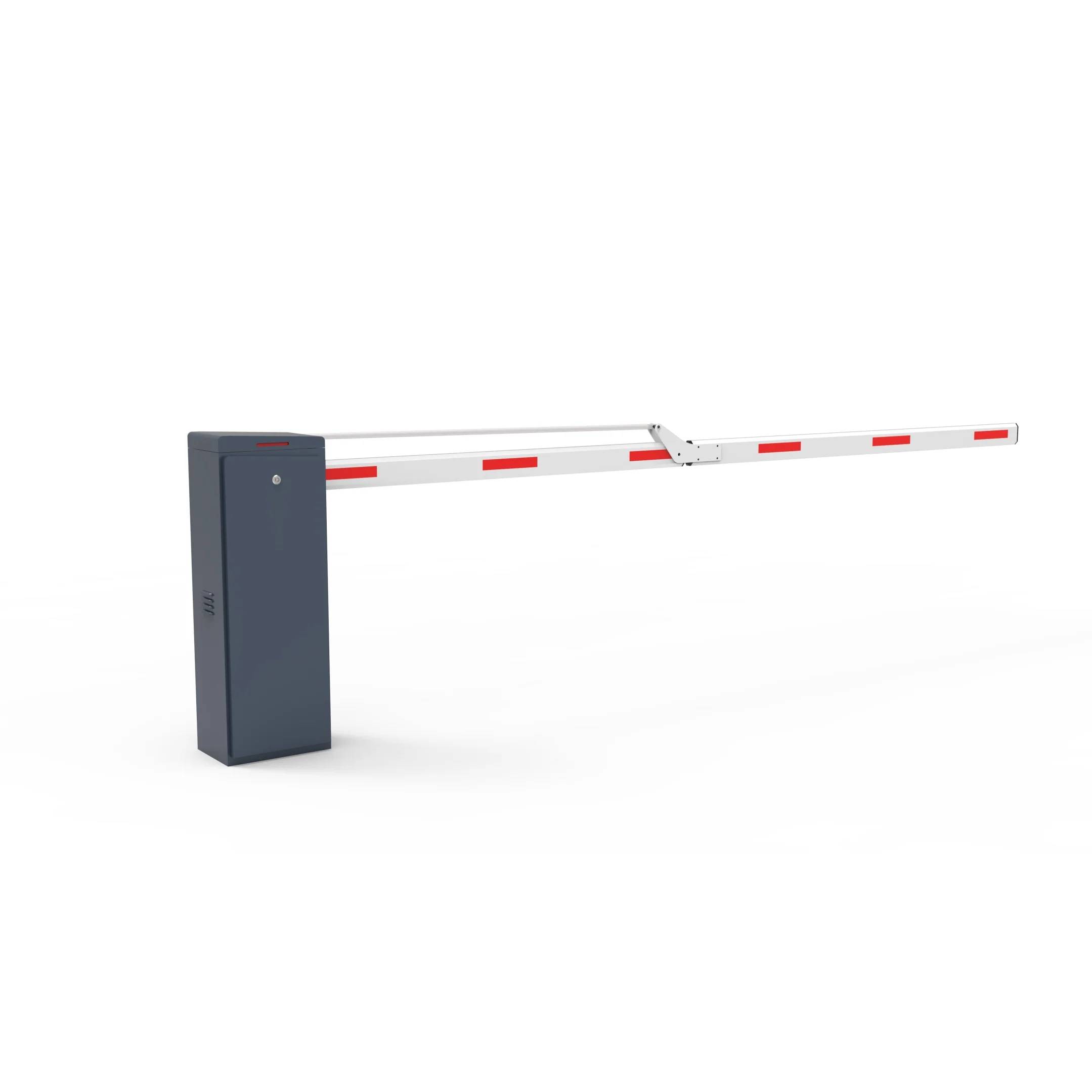

Brushless DC Barrier Gate Opener for Mall Access Control
AI Summary
Brushless DC Barrier Gate Opener for Mall Access Control is a factory-direct automatic boom barrier gate from Baroxon, built for car park entrances, residential compounds, toll lanes and industrial gates. It opens in a 0.9 s to 6 s adjustable opening time and is rated for a 3 to 10 million cycle MCBF rating with an IP54, IP65 or IP66 housing, which suits outdoor lanes in humid coastal and hot inland climates. Drive options cover 24 V DC brushless, AC 220 V and servo drive options, and boom arms from 1 m to 6 m, with 10 m available spans single-lane car parks through wide industrial gates. Control is through dry contact, relay, Wiegand, RS-485 and TCP/IP, so the unit connects to ANPR/LPR terminals, RFID readers, loop detectors, radar sensors and access control platforms.
Tested Performance Data
Cycle life
Brushless DC Barrier Gate Opener for Mall Access Control. Test condition: Continuous open and close cycling on a bench rig at an ambient temperature of 25 degrees Celsius with a 3 m straight boom arm and no wind load. Measured value: 3, 5 or 10 million MCBF depending on the drive selected. Industry benchmark: Entry-level residential barriers are commonly rated at 1 to 2 million cycles, so the mid and high tiers double to five-fold that service life.
Opening and closing time
Brushless DC Barrier Gate Opener for Mall Access Control. Test condition: Lane test with a 3 m boom, standard control board settings and a 100% duty drive. Measured value: 0.9 s to 6 s adjustable; 0.6 s to 0.9 s on the high-speed models. Industry benchmark: Conventional AC asynchronous barriers of the same arm length typically open in 1.5 s to 6 s, so the high-speed models are roughly 40% to 60% faster.
Duty cycle and daily throughput
Brushless DC Barrier Gate Opener for Mall Access Control. Test condition: Back-to-back cycling at maximum lane frequency without a cooling pause between movements. Measured value: 100% duty cycle, up to 5,000 openings per day. Industry benchmark: Intermittent-duty residential barriers are usually limited to 2,000 to 3,000 openings per day and require a rest period.
Ingress protection
Brushless DC Barrier Gate Opener for Mall Access Control. Test condition: Water and dust test on the assembled housing with the door closed and the cable gland sealed. Measured value: IP54, IP65 or IP66 depending on the model. Industry benchmark: IP44 is the common rating for light-duty barriers, so IP65 and IP66 units tolerate direct hose-down and wind-driven rain at exposed lanes.
Power consumption
Brushless DC Barrier Gate Opener for Mall Access Control. Test condition: Mains measurement of a complete unit in standby and at peak movement. Measured value: 140 W peak and under 5 W in standby. Industry benchmark: A standby load below 5 W is roughly one twentieth of the consumption of an equivalent unit left with the control board fully energised, which matters where power is metered per lane.
Figures describe the value measured under the stated condition and the reference range normally quoted for this class of equipment. Actual lane performance depends on arm length, drive type, wind load and site temperature; ask the Baroxon engineering team for the test sheet of the exact model you are specifying.
Classification :
PRODUCT DETAILS
Main Technical Specifications
| Access Type | RFID Card, Password, Key, Smartphone, Biometric / Other | Special Features | Anti-Collision, Integrated Siren, Motion Detection, Night Vision, Emergency Manual Release, Visitor Tracking |
| Storage Compatibility | Cloud Database, Local Memory Card | Chassis Material | 2.0mm Cold-rolled Steel, Stainless Steel, Zinc Alloy Housing |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Drive Type | DC 24V Brushless / AC 220V / High-Performance Servo Motor |
| Duty Cycle | 100% / Continuous Heavy-Duty / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable Variable Frequency) |
| Arm Configuration | Straight Boom / Folding (90°/180°) / Fence Arm (Two/Three-rail) | Boom Length Range | 1m - 6m (Fully Customizable per Lane) |
| Power Consumption | Peak: 140W / Standby:<5W Energy Saving | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million cycles |
| Surface Treatment | Electrostatic Outdoor Powder Coating | MTTR (Mean Time to Repair) | < 30 mins modular replacement |
| Ingress Protection Class | IP54 / IP65 / IP66 Weatherproof Rating |
Packaging and Logistics Delivery
| Sales Unit Type | Single Complete Unit / Export Packed Securely |
Engineered with a user-friendly interface featuring an integrated smart carpark system for enterprise-grade security and seamless operational management across Saudi Arabia commercial properties.
Modular architectural design guarantees streamlined installation and efficient maintenance for your high-performance automatic barrier gantry infrastructure.
Equipped with an advanced high-performance DC brushless motor and variable frequency conversion technology for precise, low-noise operation in every Saudi Arabia traffic control hardware lane.
Enhanced safety protection package includes intelligent anti-collision detection, automatic rebound logic, loop detector support, and emergency manual release capabilities.
Highly ideal for various applications including contactless RFID access, pedestrian control turnstiles, commercial driveways, and high-traffic Toll expressway management.

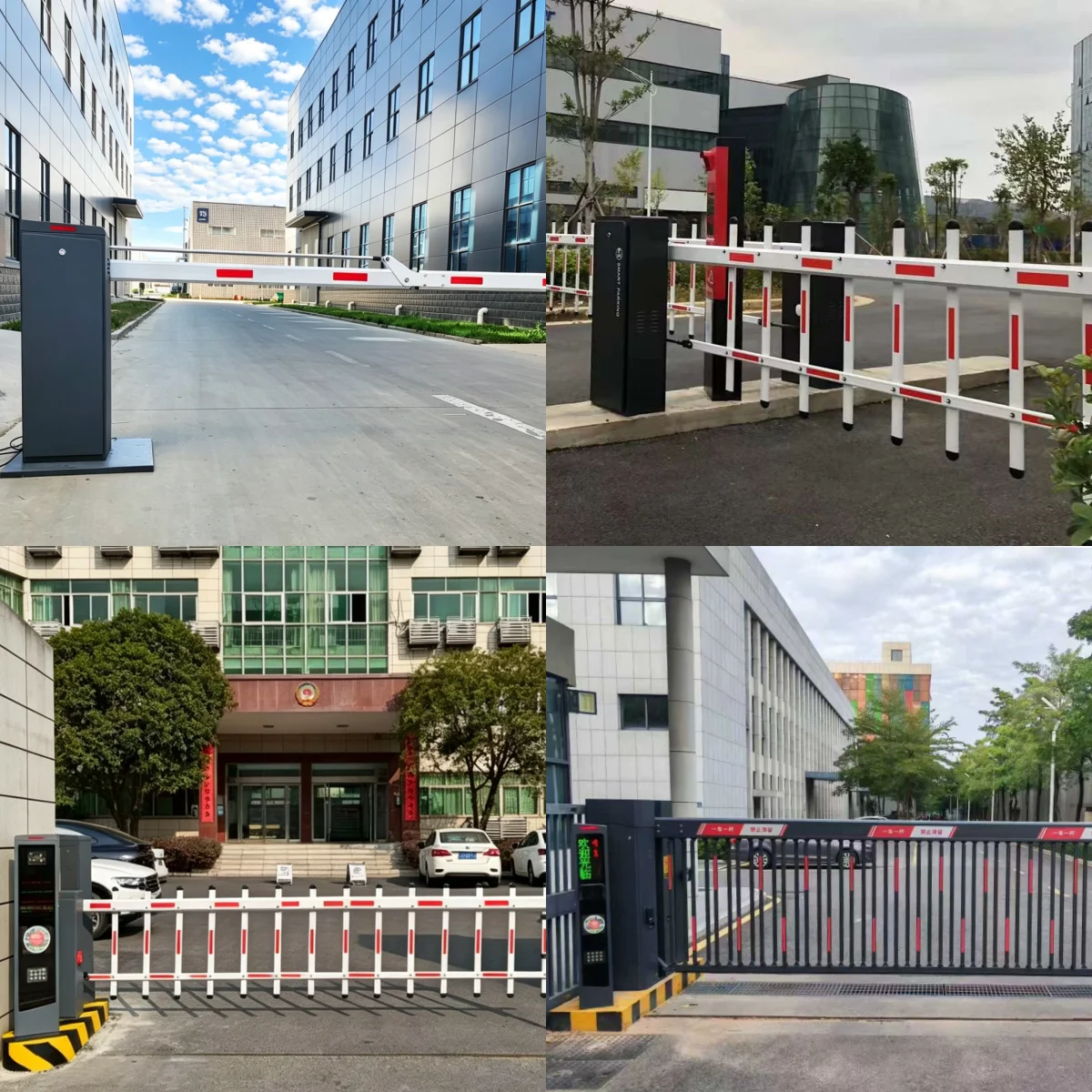

Deployment locations include: Commercial Shopping Malls, Corporate Office Buildings, Hotels & Resorts, Exhibition Centers, residential Estates, Private Condominiums, Industrial Parks, Logistics Warehouses, Port Terminals, Construction Sites, Public Infrastructure, Airports, Railway Stations, Hospitals, Government Buildings, Universities, Sports Stadiums, and Highway Toll Gates.
Product Demonstration & Operational Testing Videos
Watch our heavy-duty automatic arm barriers and electric security gates in action:
Product Mechanical Structure Images
About Baroxon - Premier Traffic Barrier Gate Manufacturer
As a leading global supplier in perimeter security and access control industries, Baroxon provides complete engineering and manufacturing capabilities for vehicle access, commercial security, and smart parking implementations.
Strategic Market Focus: Specialized engineering in heavy-duty straight arm gate operators, multi-tier fence barrier gates, folding arm mechanisms, and ANPR / LPR software integration.
Extensive Global Reach: Trusted by toll highway operators, real estate developers, and security contractors across more than 200 countries, including Saudi Arabia, the UAE, and the wider GCC.
Comprehensive Project Assistance: Delivering perimeter security site evaluations, custom architectural blueprints, professional installation training, and end-to-end technical consulting.
Cutting-Edge Innovation: Holding an extensive intellectual property portfolio with over 100 core product patents covering DC brushless control boards and automated barrier safety architectures.
Customization & Manufacturing Facility Overview
Frequently Asked Questions (FAQ)
Q: What is the operating speed range of the barrier gate?
A: Standard opening and closing speeds range from 0.8 seconds to 6 seconds, with customizable high-speed configurations tailored for highway toll plazas and commercial lanes.
Q: Is the system fully compatible with LPR cameras and RFID readers?
A: Yes, our controllers integrate seamlessly with automated License Plate Recognition (LPR) cameras, UHF long-range readers, and contactless RFID access systems.
Q: Are these units engineered for harsh outdoor environments?
A: Absolutely. They feature robust IP54 to IP66 ingress protection ratings combined with high-grade UV-resistant outdoor powder coating.
Q: What core safety mechanisms are built into the unit?
A: We provide smart anti-collision sensors, automatic reverse logic, vehicle loop detector compatibility, and an accessible manual emergency release clutch.
Q: What is the expected service lifespan of the motor drive?
A: Our advanced DC brushless motors are rigorously tested and engineered to deliver over 5 million continuous operational cycles.
