Automatic Remote Control Barrier Gate Efficient Traffic Flow
AI Summary

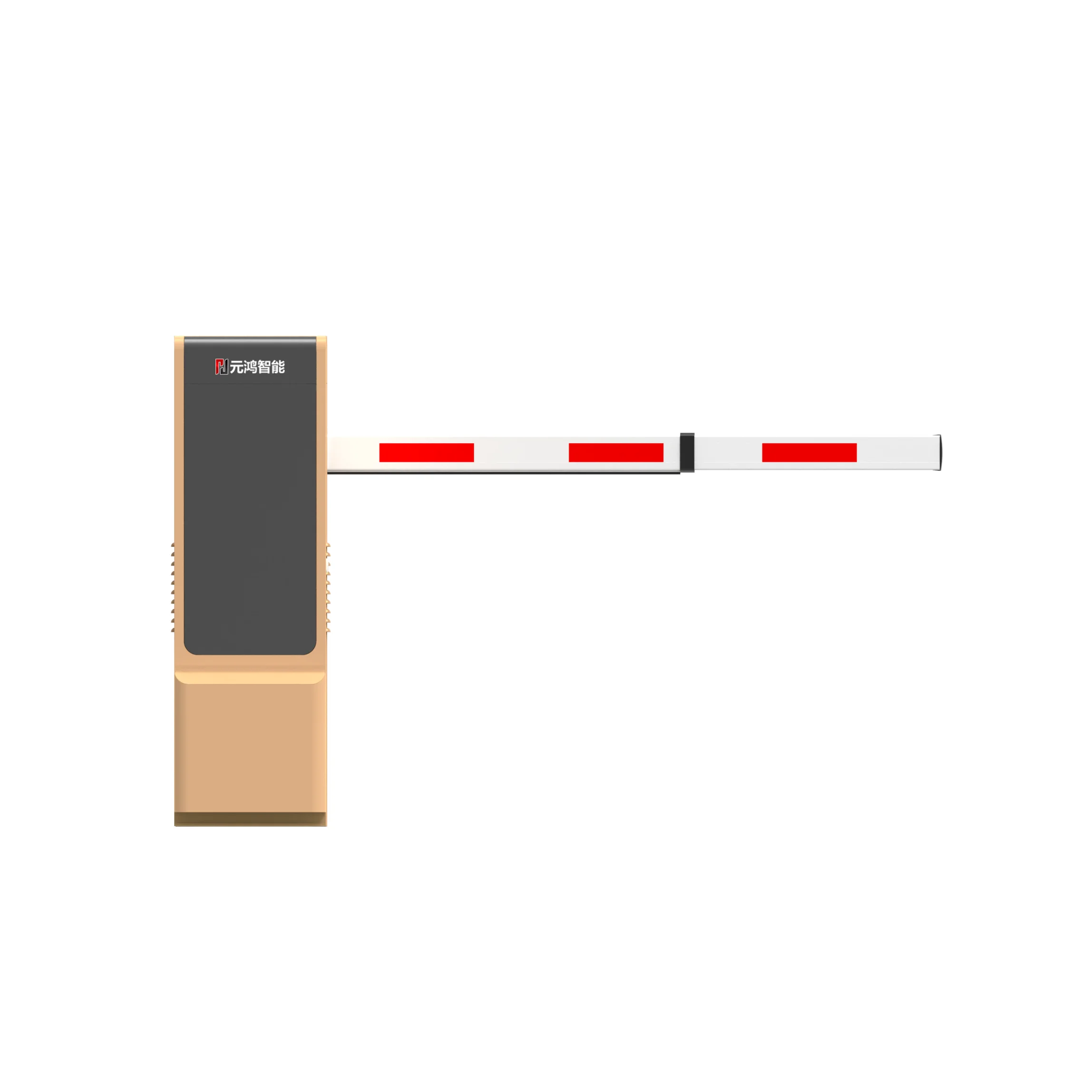

Automatic Remote Control Barrier Gate Efficient Traffic Flow is a factory-direct automatic boom barrier gate from Baroxon, built for car park entrances, residential compounds, toll lanes and industrial gates. It opens in a 0.9 s to 6 s adjustable opening time and is rated for a 3 to 10 million cycle MCBF rating with an IP54, IP65 or IP66 housing, which suits outdoor lanes in humid coastal and hot inland climates. Drive options cover 24 V DC brushless, AC 220 V and servo drive options, and boom arms from 1 m to 6 m, with 10 m available spans single-lane car parks through wide industrial gates. Control is through dry contact, relay, Wiegand, RS-485 and TCP/IP, so the unit connects to ANPR/LPR terminals, RFID readers, loop detectors, radar sensors and access control platforms.
Tested Performance Data
Cycle life
Automatic Remote Control Barrier Gate Efficient Traffic Flow. Test condition: Continuous open and close cycling on a bench rig at an ambient temperature of 25 degrees Celsius with a 3 m straight boom arm and no wind load. Measured value: 3, 5 or 10 million MCBF depending on the drive selected. Industry benchmark: Entry-level residential barriers are commonly rated at 1 to 2 million cycles, so the mid and high tiers double to five-fold that service life.
Opening and closing time
Automatic Remote Control Barrier Gate Efficient Traffic Flow. Test condition: Lane test with a 3 m boom, standard control board settings and a 100% duty drive. Measured value: 0.9 s to 6 s adjustable; 0.6 s to 0.9 s on the high-speed models. Industry benchmark: Conventional AC asynchronous barriers of the same arm length typically open in 1.5 s to 6 s, so the high-speed models are roughly 40% to 60% faster.
Duty cycle and daily throughput
Automatic Remote Control Barrier Gate Efficient Traffic Flow. Test condition: Back-to-back cycling at maximum lane frequency without a cooling pause between movements. Measured value: 100% duty cycle, up to 5,000 openings per day. Industry benchmark: Intermittent-duty residential barriers are usually limited to 2,000 to 3,000 openings per day and require a rest period.
Ingress protection
Automatic Remote Control Barrier Gate Efficient Traffic Flow. Test condition: Water and dust test on the assembled housing with the door closed and the cable gland sealed. Measured value: IP54, IP65 or IP66 depending on the model. Industry benchmark: IP44 is the common rating for light-duty barriers, so IP65 and IP66 units tolerate direct hose-down and wind-driven rain at exposed lanes.
Power consumption
Automatic Remote Control Barrier Gate Efficient Traffic Flow. Test condition: Mains measurement of a complete unit in standby and at peak movement. Measured value: 140 W peak and under 5 W in standby. Industry benchmark: A standby load below 5 W is roughly one twentieth of the consumption of an equivalent unit left with the control board fully energised, which matters where power is metered per lane.
Figures describe the value measured under the stated condition and the reference range normally quoted for this class of equipment. Actual lane performance depends on arm length, drive type, wind load and site temperature; ask the Baroxon engineering team for the test sheet of the exact model you are specifying.
Classification :
PRODUCT DETAILS
Core Product Attributes
| Access Method | RFID Card, Password, Key, Mobile App, Biometric / Other | Special Built-in Features | Anti-Collision Protection, Built-in Buzzer, Motion Sensing, Night Vision Support, Emergency Release, Attendance Logging |
| Data Storage | Cloud Database, Local Memory Card | Housing Material | Cold-rolled Steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Drive Mechanism | DC 24V Brushless / AC 220V / High-Torque Servo Motor |
| Duty Cycle | 100% / Continuous High-Traffic / 5000 cycles per day | Opening & Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable Variable Speed) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence Style (Two/Three-rail) | Arm Length Range | 1m - 6m (Fully Customizable per Lane) |
| Power Consumption | Peak: 140W / Standby:<5W Low Power | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million cycles |
| Chassis & Finish | 2.0mm Cold-rolled Steel / Anti-UV Powder Coating | MTTR (Mean Time to Repair) | < 30 mins modular replacement |
| Ingress Protection Class | IP54 / IP65 / IP66 Weatherproof Standard |
Packaging and Logistics Delivery
| Sales Unit | Single item packaged securely for export |
Intuitive operation interface featuring an integrated smart carpark gantry designed for enterprise security standards and seamless traffic supervision across Saudi Arabia commercial developments.
Modular mechanical layout ensures quick installation and low maintenance for your high-efficiency automatic parking gate infrastructure.
Operated by a robust DC brushless motor utilizing frequency conversion technology to guarantee ultra-quiet, stable performance in any Saudi Arabia traffic control hardware lane.
Advanced safety integration includes intelligent anti-clamping sensors, automatic reverse logic, and smooth emergency manual override capabilities.
Perfectly suited for various applications including contactless parking systems, residential multi-storey carparks, commercial driveways, and high-volume expressway gantry lanes.
Application environments: Commercial Shopping Malls, Corporate Headquarters, Hotels & Resorts, Exhibition Centers, Subdivision Communities, Private Estates, Condominiums, Industrial Complexes, Logistics Hubs, Port Terminals, Construction Sites, Municipal Infrastructure, Airports, Railway Stations, Hospitals, Government Offices, Universities, Sports Complexes, and Highway Toll Gates.
Product Demonstration & Operational Testing Videos
Explore our heavy-duty automatic barrier gates and security arms in action:
Product Mechanical Structure Images
About Baroxon - Leading Traffic Barrier Gate Manufacturer
As a trusted industry leader in perimeter security and vehicle access solutions, Baroxon delivers comprehensive engineering, design, and manufacturing for smart parking operations worldwide.
Strategic Industry Focus: Specialized in heavy-duty straight arm operators, multi-level security fence gates, folding barriers, and LPR software integration.
Global Client Footprint: Trusted by highway toll operators, property developers, and security contractors across over 200 countries, including Saudi Arabia, the UAE, and the wider GCC.
Full-Spectrum Project Support: Providing complete site assessment consulting, technical blueprints, professional installation training, and dependable after-sales care.
Technological Excellence: Holding over 100 core innovation patents covering advanced DC brushless controller boards and automated traffic safety systems.

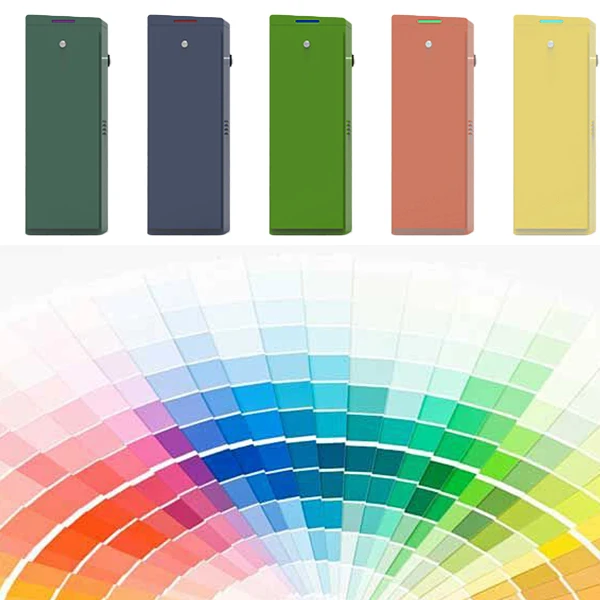

Customization & Manufacturing Overview
Frequently Asked Questions (FAQ)
Q: What is the standard operational opening and closing speed?
A: Standard speeds range from 0.8 seconds to 6 seconds, making them ideal for high-traffic toll lanes and busy commercial parking lots.
Q: Are these barrier gates compatible with RFID and LPR technology?
A: Yes, our control boards interface seamlessly with License Plate Recognition cameras, UHF readers, and contactless RFID access cards.
Q: Do these units withstand outdoor weather conditions?
A: Absolutely, they feature IP54 to IP66 ratings alongside an electrostatic anti-UV powder coating for long-lasting tropical outdoor durability.
Q: What safety protections are built into the system?
A: They include smart anti-collision bounce back, loop detector integration, and a manual emergency release clutch.
Q: What is the expected durability or lifespan of the motor?
A: Our DC brushless motors are engineered to perform reliably for over 5 million operational cycles.
Direct Factory Inquiries & Support
Contact Baroxon today for wholesale partnerships and project quotations: E-mail: [email protected] | WhatsApp: +8613405313100 | WeChat: +86 18660196023
