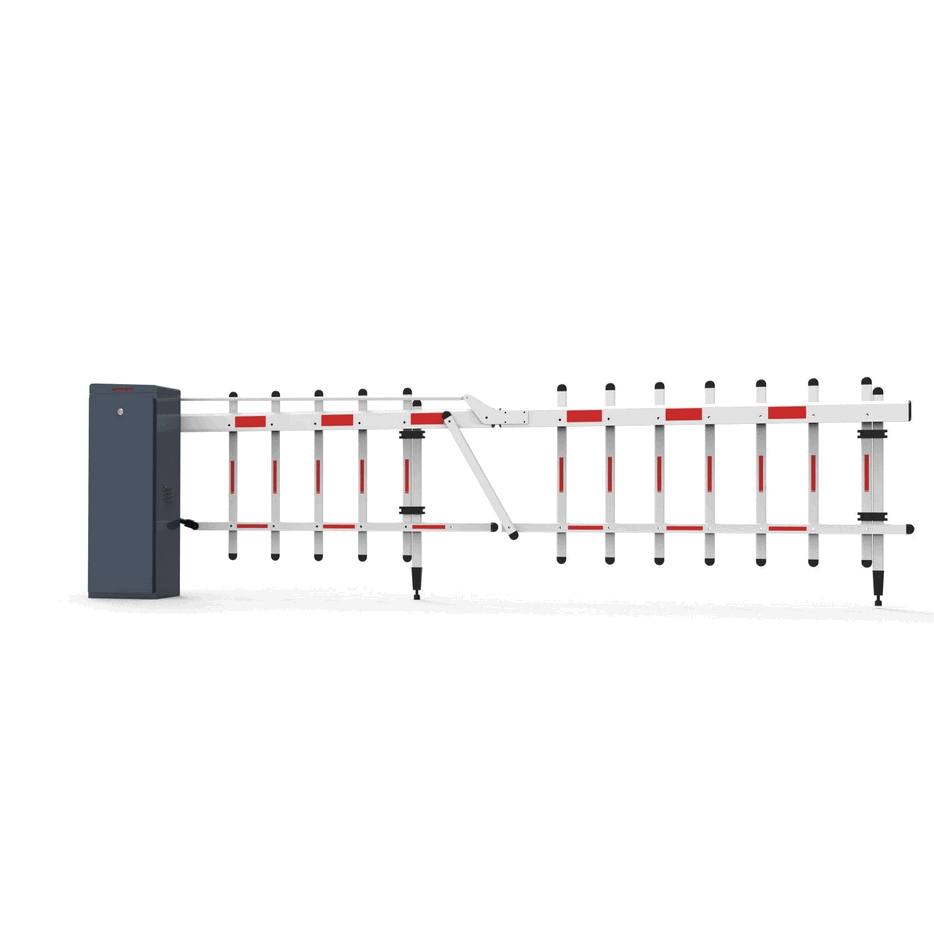

High-Speed Automatic Boom Barrier Gate
AI Summary
High-Speed Automatic Boom Barrier Gate is a factory-direct high-speed barrier gate from Baroxon, built for high-traffic toll plazas, logistics gates and premium car parks. It opens in a 0.6 s to 0.9 s opening time, or 0.3 s on selected models and is rated for a 5 to 10 million cycle MCBF rating with an IP54, IP65 or IP66 housing, which suits outdoor lanes in humid coastal and hot inland climates. Drive options cover servo and 24 V DC brushless drive options, and boom arms from 3 m to 6 m, with 10 m available spans single-lane car parks through wide industrial gates. Control is through loop detector, ANPR trigger, RFID, Wiegand, RS-485 and TCP/IP, so the unit connects to ANPR/LPR terminals, RFID readers, loop detectors, radar sensors and access control platforms.
Tested Performance Data
Opening and closing time
High-Speed Automatic Boom Barrier Gate. Test condition: High-frequency lane test with a 3 m boom and repeated back-to-back triggering. Measured value: 0.6 s to 0.9 s, with 0.3 s available on selected models. Industry benchmark: Standard barrier gates of the same arm length open in 1.5 s to 6 s, so a 0.6 s unit clears roughly two to three times more vehicles in the same peak hour.
Cycle life
High-Speed Automatic Boom Barrier Gate. Test condition: Continuous duty cycling on a bench rig with no idle interval between cycles. Measured value: 5 to 10 million MCBF. Industry benchmark: Light-duty residential barriers are commonly rated at 1 to 2 million cycles.
Duty cycle
High-Speed Automatic Boom Barrier Gate. Test condition: Sustained operation at a toll lane rhythm without a cooling interval. Measured value: 100% continuous duty. Industry benchmark: Intermittent-duty mechanisms typically require a duty cycle of 30% to 50% and a cooling pause between movements.
Ingress protection
High-Speed Automatic Boom Barrier Gate. Test condition: Water and dust test on the assembled housing. Measured value: IP54, IP65 or IP66 depending on the model. Industry benchmark: IP44 is the usual rating on light-duty barriers.
Interface latency
High-Speed Automatic Boom Barrier Gate. Test condition: Trigger-to-movement test from an ANPR or loop detector signal into the barrier controller. Measured value: Loop detector, ANPR trigger, RFID, Wiegand, RS-485 and TCP/IP inputs. Industry benchmark: Relay-only barriers need external converters to accept network or plate-recognition triggers, which adds a further delay and another point of failure.
Figures describe the value measured under the stated condition and the reference range normally quoted for this class of equipment. Actual lane performance depends on arm length, drive type, wind load and site temperature; ask the Baroxon engineering team for the test sheet of the exact model you are specifying.
Classification :
PRODUCT DETAILS
Main Technical Specifications - Baroxon High-Performance Traffic Control System
| Credential Type | RFID Card, Code, Key, Smartphone, Others | Special Features | Anti-Theft, Built-in Siren, Motion Detection, Night Vision, Audio, Time Attendance, Others |
| Storage | Cloud, Memory Card | Material | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | Ba-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF | 3 million / 5 million / 10 million cycles |
| Housing Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
Packaging and Logistics
| Sales Unit | Single item |
Intuitive Operator Interface: Utilizing advanced integrated controller boards for rapid access configuration and efficient traffic management across high-mobility commercial complexes in Saudi Arabia.
Modular Architecture: Internal mechanical structure engineered for swift installation, minimizing field setup costs and simplifying routine maintenance for local facility supervisors.
High-Stability Powertrain: Integrating precision DC brushless motor technology and digital frequency conversion to guarantee precise positioning, smooth movement, and silent operation.
Intelligent Security Defense System: Equipped with mechanical anti-collision detection, real-time auto-rebound features, and manual arm release for emergency evacuation procedures.
Extensive System Compatibility: Seamless integration with RFID card readers, automated security barrier gates in Saudi Arabia, pedestrian control turnstiles, vehicle induction loop detectors, and smart building management systems.
High-Traffic Application: Ideal solutions for commercial shopping malls, Grade-A office towers, luxury hotels, residential condominiums, logistics distribution centers, industrial parks, and high-speed vehicle access control systems in Saudi Arabia.
Security Barrier Gate and Vehicle Access Demo Videos
Watch our Baroxon electric barrier gate cycle tests and reliability demonstrations deployed in field environments:
Internal Component Details and Mechanical Structure
About BAROXON - Global Barrier Gate Security System Manufacturer
As an access control engineering specialist, Baroxon offers custom manufacturing solutions for perimeter security installations, carpark management, and vehicular facilities. Our catalog provides complete automated entry hardware specifically designed for professional contractors and security integrators.
Product Excellence: High-durability straight arm operators, anti-climb security fences, articulating folding arms for restricted headroom, and ANPR/LPR communication protocol support.
Global Reach: Serving traffic management requirements across Saudi Arabia, the GCC, and over 200 international markets worldwide.
Comprehensive Technical Support: Property security evaluation, multi-lane CAD layout designs, system calibration training, and professional technical consultancy.
Ergonomic Design: Robust chassis frames facilitating rapid on-site installation, optimal cable routing, and economical field servicing.
Patent Innovation: 100+ technology patents featuring advanced DC brushless motor drivers and secure microchip control architectures.
Experienced R&D: Engineering team with 20 years of technical background in the automated physical security and access control industry.
Premium SLA Services: Instant digital response, professional technical diagnostics, and reliable maintenance support for local project partners.
OEM Customization and Branding
Mechanical Powertrain Superiority
Field Project Implementation
Production and Assembly Facilities
Live Traffic Operations
International Certification Compliance
CNC Workshop and Coating
Logistics and Export Warehousing
Frequently Asked Questions (FAQ)
Q1: What are the opening and closing speed options for this barrier system?
A: Standard operating speeds range from 0.6 seconds to 6 seconds. For high-density vehicle lanes, we recommend our specialized high-speed configurations.
Q2: Does the control board support local electrical standards and backup power?
A: Yes, units accept standard AC inputs and support auxiliary DC batteries or renewable solar setups for off-grid deployment.
Q3: What is the maximum reach of the aluminum boom arm?
A: We provide high-strength aluminum arms ranging from 1 meter up to 6 meters, fully customizable to project dimensions.
Q4: Can these systems integrate easily with ANPR cameras or RFID readers?
A: Absolutely. Baroxon controllers utilize open standard protocols like Wiegand, RS485, and TCP/IP for seamless third-party software integration.
Q5: How does the housing withstand harsh tropical weather conditions?
A: Heavy-duty galvanized steel housing combined with an IP66 protection rating ensures superior defense against heavy rainfall, humidity, and salt corrosion.
Q6: What safety features are built into the unit to prevent accidents?
A: The system includes electronic load-sensing auto-reversal, inductive loop detector compatibility, and a secure manual key-release mechanism.
Q7: What is the expected service lifespan of the DC brushless motor?
A: Designed with an MCBF rating of up to 10 million cycles, our motors offer long-term operational reliability with minimal upkeep.
Q8: Are folding boom arms available for multi-storey carparks with low headroom?
A: Yes, we offer 90-degree and 180-degree folding arm configurations designed specifically for basement parking environments.
