Heavy-Duty Advertising Screen Folding Boom Barrier Gate
AI Summary
Heavy-Duty Advertising Screen Folding Boom Barrier Gate is a factory-direct automatic boom barrier gate from Baroxon, built for car park entrances, residential compounds, toll lanes and industrial gates. It opens in a 0.9 s to 6 s adjustable opening time and is rated for a 3 to 10 million cycle MCBF rating with an IP54, IP65 or IP66 housing, which suits outdoor lanes in humid coastal and hot inland climates. Drive options cover 24 V DC brushless, AC 220 V and servo drive options, and boom arms from 1 m to 6 m, with 10 m available spans single-lane car parks through wide industrial gates. Control is through dry contact, relay, Wiegand, RS-485 and TCP/IP, so the unit connects to ANPR/LPR terminals, RFID readers, loop detectors, radar sensors and access control platforms.
Tested Performance Data
Cycle life
Heavy-Duty Advertising Screen Folding Boom Barrier Gate. Test condition: Continuous open and close cycling on a bench rig at an ambient temperature of 25 degrees Celsius with a 3 m straight boom arm and no wind load. Measured value: 3, 5 or 10 million MCBF depending on the drive selected. Industry benchmark: Entry-level residential barriers are commonly rated at 1 to 2 million cycles, so the mid and high tiers double to five-fold that service life.
Opening and closing time
Heavy-Duty Advertising Screen Folding Boom Barrier Gate. Test condition: Lane test with a 3 m boom, standard control board settings and a 100% duty drive. Measured value: 0.9 s to 6 s adjustable; 0.6 s to 0.9 s on the high-speed models. Industry benchmark: Conventional AC asynchronous barriers of the same arm length typically open in 1.5 s to 6 s, so the high-speed models are roughly 40% to 60% faster.
Duty cycle and daily throughput
Heavy-Duty Advertising Screen Folding Boom Barrier Gate. Test condition: Back-to-back cycling at maximum lane frequency without a cooling pause between movements. Measured value: 100% duty cycle, up to 5,000 openings per day. Industry benchmark: Intermittent-duty residential barriers are usually limited to 2,000 to 3,000 openings per day and require a rest period.
Ingress protection
Heavy-Duty Advertising Screen Folding Boom Barrier Gate. Test condition: Water and dust test on the assembled housing with the door closed and the cable gland sealed. Measured value: IP54, IP65 or IP66 depending on the model. Industry benchmark: IP44 is the common rating for light-duty barriers, so IP65 and IP66 units tolerate direct hose-down and wind-driven rain at exposed lanes.
Power consumption
Heavy-Duty Advertising Screen Folding Boom Barrier Gate. Test condition: Mains measurement of a complete unit in standby and at peak movement. Measured value: 140 W peak and under 5 W in standby. Industry benchmark: A standby load below 5 W is roughly one twentieth of the consumption of an equivalent unit left with the control board fully energised, which matters where power is metered per lane.
Figures describe the value measured under the stated condition and the reference range normally quoted for this class of equipment. Actual lane performance depends on arm length, drive type, wind load and site temperature; ask the Baroxon engineering team for the test sheet of the exact model you are specifying.
Classification :
PRODUCT DETAILS
Primary Specifications & Parameters
| Access Type | RFID Card, Pin Code, Key, Smartphone, Other | Special Features | Anti-Theft, Integrated Siren, Motion Detection, Night Vision, One-Way Audio, Time Attendance, Other |
| Storage Options | Cloud Storage, Memory Card | Material Quality | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Drive Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Open/Close Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Rating | IP54 / IP65 / IP66 |
Packaging and Delivery
| Sales Unit | Single item |
User-friendly interface featuring an intelligent car park system for reliable and efficient vehicle access control standards across various commercial establishments in Saudi Arabia.
Our modular engineering structure guarantees streamlined installation and low-maintenance upkeep for your automatic barrier gantry deployment in urban hubs.
Engineered with a high-performance DC brushless motor and frequency conversion tech to ensure smooth, accurate, and ultra-quiet operation within any Saudi Arabia traffic control hardware network.
Equipped with advanced safety protection functions, including anti-collision detection, automatic rebound logic, and safe power-off manual release mechanisms.
Highly ideal for diverse applications such as RFID card access, pedestrian security control gates, commercial mall entries, and high-density traffic toll lane management.

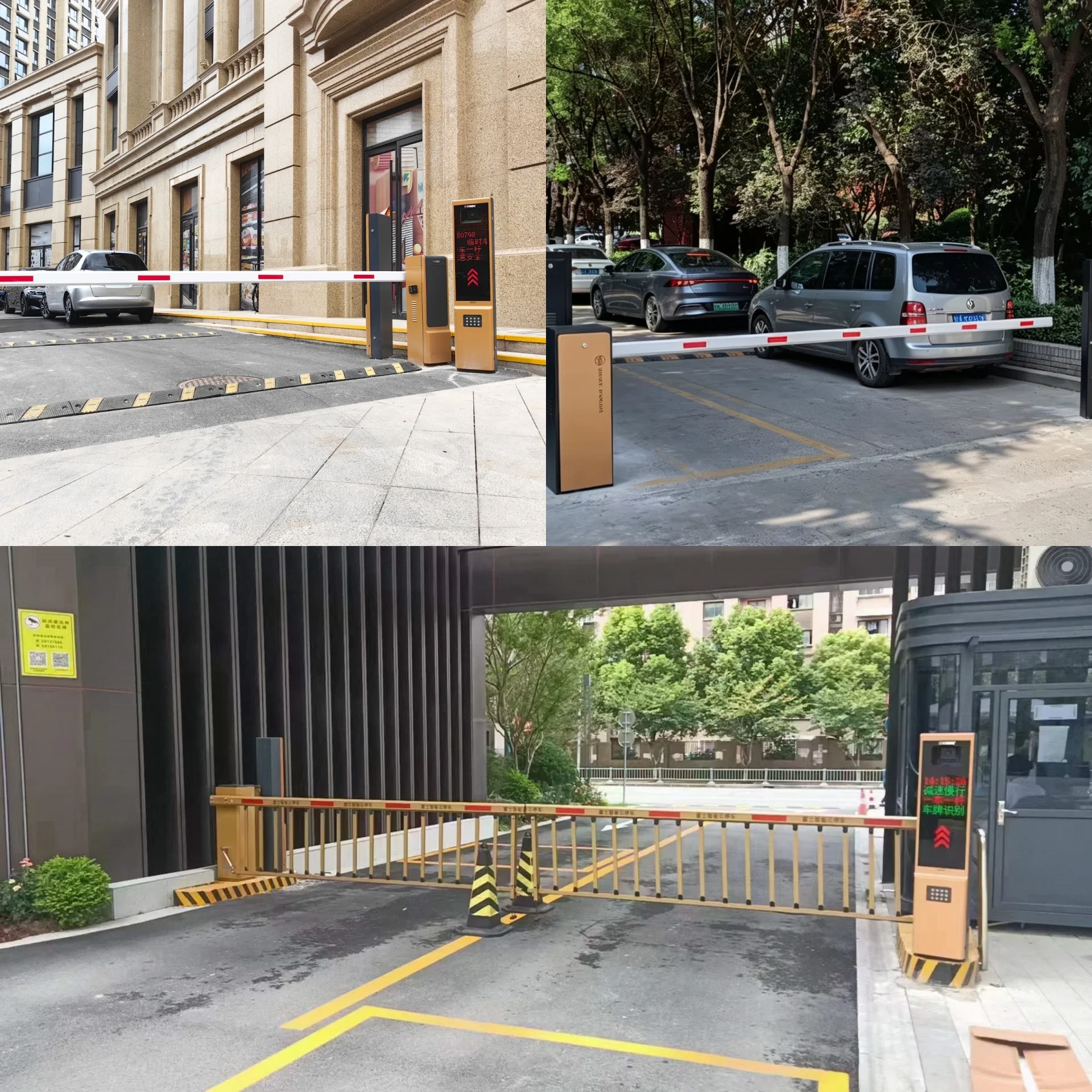

Usage scenarios include: Shopping Malls, Corporate Office Buildings, Hotels & Resorts, Exhibition Halls, Residential Subdivision Compounds, Private Villas, Condominiums, Industrial Logistics Parks, Warehouse Facilities, Port Terminals, Construction Project Sites, Public Infrastructure, Airports, Railway Stations, Hospitals, Government Buildings, Educational Campuses, Sports Stadiums, and Highway Toll Gates.
Product Demonstration & Testing Videos
Witness our high-grade automated barrier arms and electric security boom gates in action:
Product Structure Images
About Baroxon - Premier Traffic Barrier Gate Manufacturer
As a leading supplier in perimeter security and access control industries, Baroxon provides turnkey engineering for vehicle access, commercial security, and smart parking implementations.
Strategic Market Position: Specialized in heavy-duty straight arm gate operators, multi-rail fence barriers, folding arms, and ANPR/LPR software integration.
Global Footprint: Trusted by toll operators, housing developers, and contractors across over 200 countries, including Saudi Arabia, the UAE, and the wider GCC.
Full Project Support: Providing site assessments, engineering blueprints, hardware training, and complete technical consulting.
Technological Innovation: Holder of over 100 patents in DC brushless control boards and automated barrier safety systems.

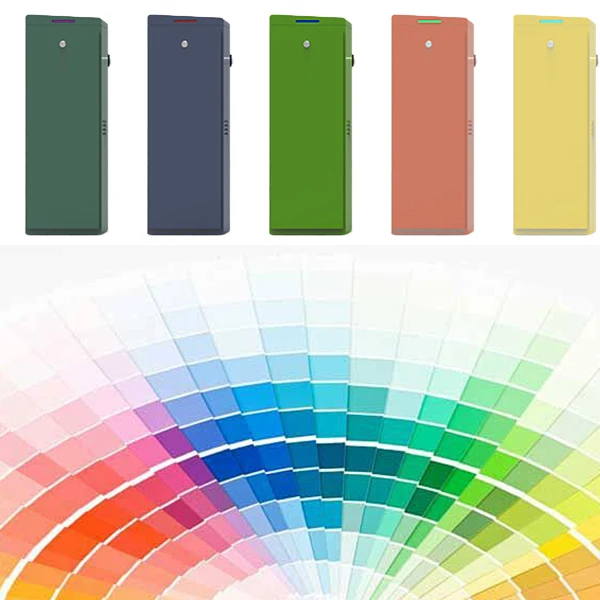

Customization & Manufacturing Overview
Frequently Asked Questions (FAQ)
Q: Can the gate work with LPR or RFID systems?
A: Yes, fully compatible with LPR (License Plate Recognition), RFID proximity cards, and long-range UHF readers.
Q: What is the operating open/close speed of the gate?
A: Standard speeds range from 0.8s to 6s, tailored for high-traffic toll plazas and commercial site management.
Q: Is it suitable for outdoor environments?
A: Absolutely, our units feature IP54-IP66 ratings with robust anti-UV powder coating for long-lasting durability.
Q: What safety features are provided?
A: The system includes anti-collision sensors, auto-reverse logic, loop detector integration, and manual clutches for power outages.
Q: What is the lifespan of the motor?
A: Our DC brushless components are engineered for over 5 million cycles, ensuring reliable service with minimal maintenance.
