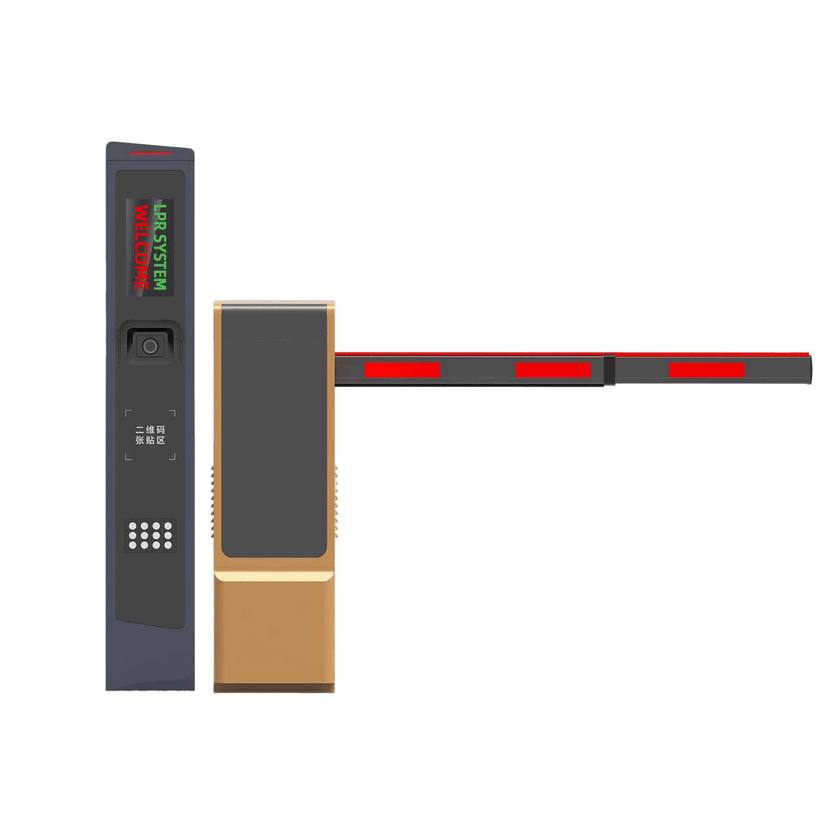

Electric Parking Barrier Gate & Automated Toll Rising Arm System - High-Speed Traffic Control Barrier Solution
Classification :
PRODUCT DETAILS
Key Attributes & Technical Specifications
| Type | Card. Code. Key. Smartphone. Other | Special Features | Anti-Theft. Built-In Siren. Motion Detection. Night Vision. One-Way Audio. Time & Attendance. Other |
| Storage | Cloud. Memory Card | Material | Cold rolled steel. Stainless Steel. Zinc Alloy |
| Place of Origin | Shandong. China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 110V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
Packaging and Delivery
| Selling Units | Single item |
Smart System Logic Control Board: Fitted with intelligent onboard controllers for smooth local parameter calibration, enabling direct smart card credential registration, and streamlining low-voltage cabling terminations for modern commercial developments across Singapore industrial estates and HDB commercial properties.
Integrated Modular Core Architecture: This compact and centralised mechanical assembly significantly streamlines site deployment operations and ensures trouble-free cyclical facility upkeep, delivering a robust barrier gate system Singapore foundation for your perimeter security network.
High-Efficiency Drive Dynamo Performance: Combining heavy-duty industrial grade brushless DC motors paired with advanced frequency inverter hardware to guarantee precise boom arm movement, smooth deceleration transitions, and ultra-quiet car park gantry control across every Orchard Road or CBD commercial vehicle entry lane.
Proactive Comprehensive Physical Safety Layer: Engineered with multi-tier anti-accident protocols, including real-time auto-reverse functions upon detecting minor obstructions, safety induction loop integrations, and ergonomic manual clutch release levers during emergency facility power blackouts.
Access Control Universal Terminal Interface: Plug-and-play internal connectors ready for direct wiring to long-range UHF RFID reader pedestals, pedestrian full-height turnstiles, optical speed gates, and retail mall entrance barriers integrated with 24v brushless motor barrier gate operators and vehicle loop detectors.
High-Frequency Commercial Application Scenarios: Purpose-built to manage dense, high-volume vehicular traffic flows continuously across modern shopping malls, corporate office towers, commercial business parks, luxury hotels, private condominiums, and secure industrial logistics hubs.
Product Demonstrations & Rigorous Quality Testing Videos
Witness comprehensive field trials of our heavy-duty drop arm automatic road barriers and electric security boom gate operators below:
Product Structure Images & Detailed Component Diagrams
About BAROXON - Leading Manufacturer of Traffic Barrier Gates
As a premier global supplier in perimeter security and access control industries, BAROXON offers full turnkey manufacturing engineering capabilities for traffic management systems, commercial entry access controls, and smart parking implementations. Our robust heavy-duty industrial parking barrier gate hardware provides top-tier operational reliability assurances for system integrators, development contractors, facility management authorities, and commercial property developers worldwide.
Strategic Market Position: In-depth engineering focus on developing heavy-duty straight arm operators, multi-rail fence restriction barriers, articulated folding arm boom barriers, and intelligent ANPR parking system Singapore software integration.
Global Distribution Footprint: Proudly supplying car park operators, residential condominium developers, and commercial contractors across over 200 countries including Southeast Asian markets, the United Kingdom, Australia, and North America.
Integrated Project Support: Providing comprehensive perimeter security site analysis services, system design blueprint compilation, field hardware installation training, and dedicated one-stop technical consultation sessions for clients.
Practical Mechanical Design: Purpose-designed internal molded structures greatly simplify site mobilization, lightning-fast on-site installation, and minimize routine operational maintenance costs in the field.
Leading Technology Innovation: Owning an extensive intellectual property portfolio comprising over 100 core patents covering brushless DC smart inverter control boards and vehicle driving safety sensor mechanisms.
Professional Engineering Experts: Our internal production management as well as research and development (R&D) teams are backed by over 20 years of practical experience in the commercial security autogate manufacturing industry.
Top After-Sales Commitment: Guaranteeing fast online customer service responses within 1 minute, technical issue processing within 2 hours, and complete problem resolution within a closed-loop cycle of max 2 business days.
OEM Manufacturing Facilities & Customization Capabilities
Product Element Mechanical Advantages

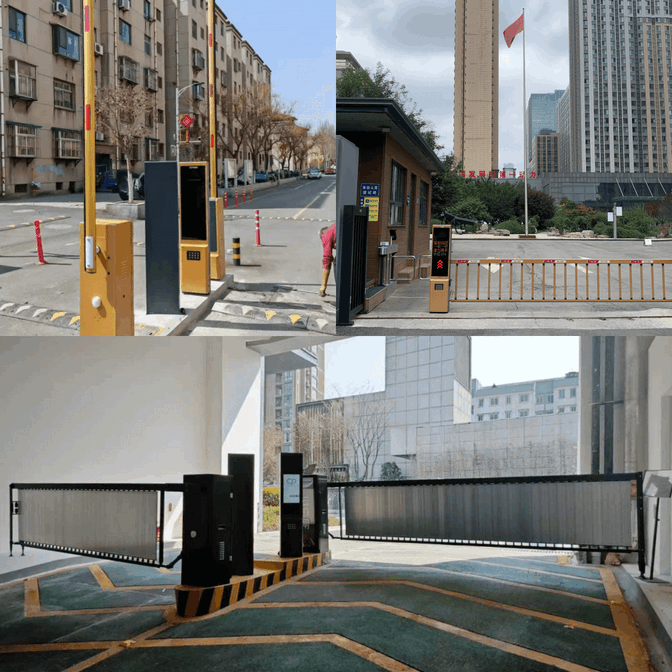

Field Project Documentation Photos
Modern Assembly Factory Facilities & Company Overview
Real-Time Traffic Flow Scenarios
Competitive Advantages & Official Certification Ownership

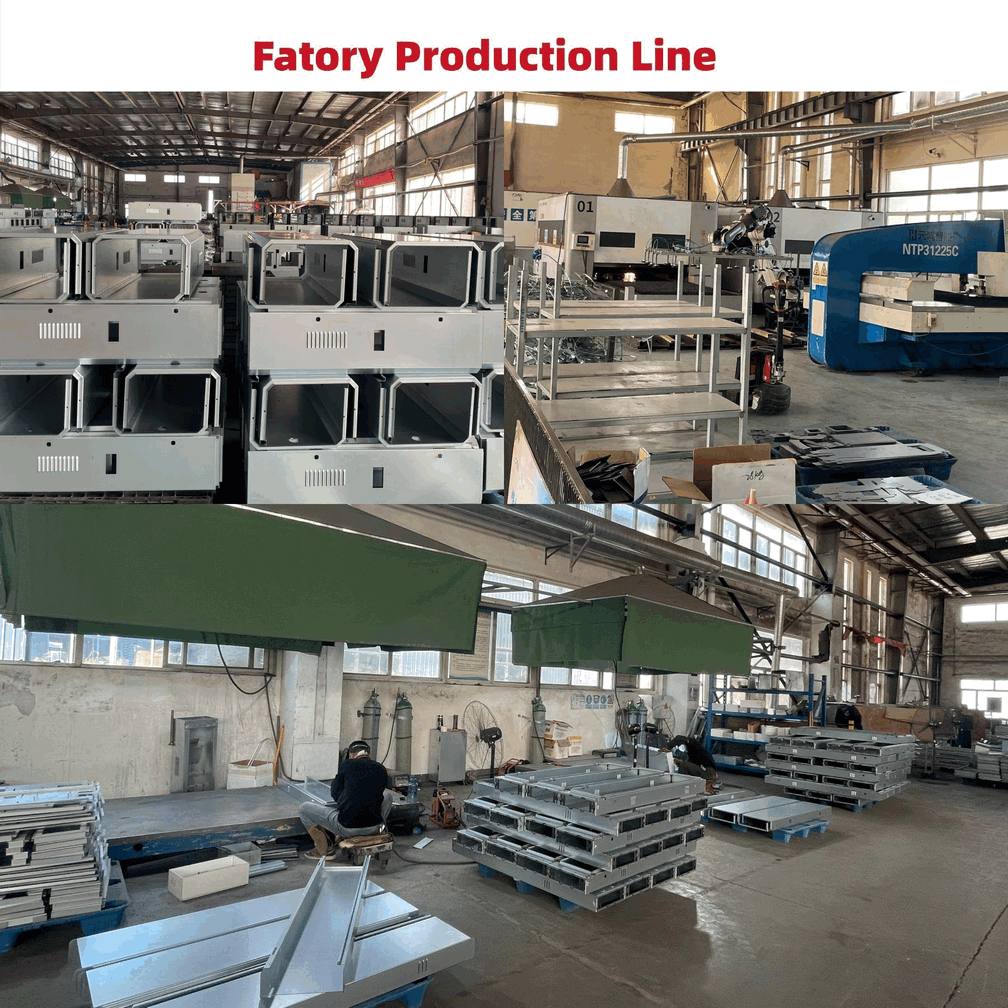

Sheet Metal Processing Workshop & Factory Profile
Component Warehouse Infrastructure & Global Logistics Management
Frequently Asked Questions (FAQ)
Q1: What is the adjustable opening and closing speed range for the barrier arm on this device?
A: Barrier operational speed can be fully customized digitally through the main control board, supporting high-speed cycles starting from 0.6s / 0.9s / 1.5s - 6s (Adjustable). This flexible calibration capability allows optimal integration matching aluminum arm profile lengths and vehicle flow rates across toll gates and industrial areas.
Q2: Is the main control board compatible with regional electrical grids as well as off-grid solar setups?
A: Yes, our internal transformer system supports standard commercial electrical voltages of AC 110V or AC 220V. Because its main driver adopts highly efficient low-voltage DC 24V brushless motor technology, the system can connect directly to solar panel arrays and deep-cycle backup batteries for remote perimeter zones lacking standard utility power.
Q3: What is the maximum barrier arm length limit that can be driven by this mechanical chassis?
A: Our heavy-duty internal mechanical construction is capable of driving high-strength aluminum alloy profile arms ranging from 1m - 6m (Customizable). For zones with low overhead clearance limits like underground basement parking, 90° or 180° articulated folding arm accessories are readily available.
Q4: How can this barrier gate mechanism integrate with RFID reader hardware or external camera systems?
A: Our main control circuit board is designed with comprehensive physical terminals supporting dry-contact relay connections, RS485 communication standards, and Wiegand integration interfaces. This ensures plug-and-play instant connection to high-resolution digital license plate recognition cameras, long-range UHF RFID card readers, automated parking ticket dispensers, and commercial parking POS software.
Q5: Is the outdoor barrier street housing chassis safe against corrosion and outdoor weather changes?
A: Absolutely. Our machine enclosure housing is manufactured using 2.0mm cold-rolled steel plates combined with strict sealing techniques certified under IP54 / IP65 / IP66 weather protection ratings. All exterior surfaces are coated with industrial-grade anti-UV powder coatings to ensure long-term durability against heavy torrential rain and intense external solar heat.
Q6: What built-in safety protection modules are included to avoid vehicle or pedestrian impact collisions?
A: The internal motor driver features intelligent current loop monitoring that instantly activates auto-rebound functions (reversing upward immediately) if the barrier arm touches any minor physical obstacle. The motherboard also provides ready interconnect paths for active infrared photocells, underground metal vehicle detection loop detectors, and manual mechanical emergency release clutches during total power blackouts.
Q7: What is the certified average operational mechanical lifespan for this drive system?
A: Thanks to the combination of high-accuracy sinusoidal transmissions with wear-resistant industrial steel gears, our DC brushless drive units achieve MCBF (Mean Cycles Between Failure) values reaching 3 million / 5 million / 10 million times. The system passes nonstop testing with 100% duty cycles / Continuous operation, guaranteeing heavy traffic management without cumbersome routine maintenance.
Direct Factory Partnership & Distribution Services
Contact official BAROXON representatives today to get wholesale pricing offers, project tender procurements, or custom manufacturing orders:
E-mail: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
