Commercial Barrier Gate System
AI Summary
Commercial Barrier Gate System is a factory-direct automatic boom barrier gate from Baroxon, built for car park entrances, residential compounds, toll lanes and industrial gates. It opens in a 0.9 s to 6 s adjustable opening time and is rated for a 3 to 10 million cycle MCBF rating with an IP54, IP65 or IP66 housing, which suits outdoor lanes in humid coastal and hot inland climates. Drive options cover 24 V DC brushless, AC 220 V and servo drive options, and boom arms from 1 m to 6 m, with 10 m available spans single-lane car parks through wide industrial gates. Control is through dry contact, relay, Wiegand, RS-485 and TCP/IP, so the unit connects to ANPR/LPR terminals, RFID readers, loop detectors, radar sensors and access control platforms.
Tested Performance Data
Cycle life
Commercial Barrier Gate System. Test condition: Continuous open and close cycling on a bench rig at an ambient temperature of 25 degrees Celsius with a 3 m straight boom arm and no wind load. Measured value: 3, 5 or 10 million MCBF depending on the drive selected. Industry benchmark: Entry-level residential barriers are commonly rated at 1 to 2 million cycles, so the mid and high tiers double to five-fold that service life.
Opening and closing time
Commercial Barrier Gate System. Test condition: Lane test with a 3 m boom, standard control board settings and a 100% duty drive. Measured value: 0.9 s to 6 s adjustable; 0.6 s to 0.9 s on the high-speed models. Industry benchmark: Conventional AC asynchronous barriers of the same arm length typically open in 1.5 s to 6 s, so the high-speed models are roughly 40% to 60% faster.
Duty cycle and daily throughput
Commercial Barrier Gate System. Test condition: Back-to-back cycling at maximum lane frequency without a cooling pause between movements. Measured value: 100% duty cycle, up to 5,000 openings per day. Industry benchmark: Intermittent-duty residential barriers are usually limited to 2,000 to 3,000 openings per day and require a rest period.
Ingress protection
Commercial Barrier Gate System. Test condition: Water and dust test on the assembled housing with the door closed and the cable gland sealed. Measured value: IP54, IP65 or IP66 depending on the model. Industry benchmark: IP44 is the common rating for light-duty barriers, so IP65 and IP66 units tolerate direct hose-down and wind-driven rain at exposed lanes.
Power consumption
Commercial Barrier Gate System. Test condition: Mains measurement of a complete unit in standby and at peak movement. Measured value: 140 W peak and under 5 W in standby. Industry benchmark: A standby load below 5 W is roughly one twentieth of the consumption of an equivalent unit left with the control board fully energised, which matters where power is metered per lane.
Figures describe the value measured under the stated condition and the reference range normally quoted for this class of equipment. Actual lane performance depends on arm length, drive type, wind load and site temperature; ask the Baroxon engineering team for the test sheet of the exact model you are specifying.
Classification :
PRODUCT DETAILS
Key Technical Specifications & Operational Attributes
| Access Method | RFID Tag, PIN Code, Mechanical Key, Smartphone App, Biometric & Other | Special Features | Anti-Collision Rebound, Built-In Alarm Siren, Motion Detection, Night Vision, Intercom Audio, Time & Attendance Logs |
| Data Storage | Cloud Server, Local Memory Card Storage | Chassis Material | 2.0mm Cold-Rolled Steel, Stainless Steel, Heavy-Duty Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Actuator Type | DC 24V Brushless / AC 220V / Servo Motor Drive |
| Duty Cycle | 100% / Continuous Operation / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable via PCB) |
| Boom Arm Profile | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable lengths) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million cycles |
| Housing Coating | Outdoor Anti-UV Powder Paint Finish | MTTR (Mean Time to Repair) | < 30 mins |
| Ingress Protection Class | IP54 / IP65 / IP66 Weatherproof |
Packaging and Delivery Terms
| Selling Units | Single item packaged with custom wooden crates for international shipping |
Engineered for high-volume commercial lanes, our smart car park system delivers seamless vehicle management across commercial developments and industrial estates in Saudi Arabia.
Featuring a robust structural framework, this automatic barrier gantry guarantees rapid deployment, minimal upkeep, and exceptional weatherproof endurance across urban infrastructure.
Powered by an advanced DC brushless motor and variable frequency technology, the unit provides smooth, silent, and vibration-free motion for every Saudi Arabia traffic control hardware installation.
Equipped with multi-layered safety mechanisms including intelligent obstacle auto-reversal, ground loop detector compatibility, and manual clutch releases during power blackouts.
Designed to integrate smoothly with RFID proximity readers, license plate recognition (LPR) cameras, and pedestrian access control terminals for complete perimeter security.

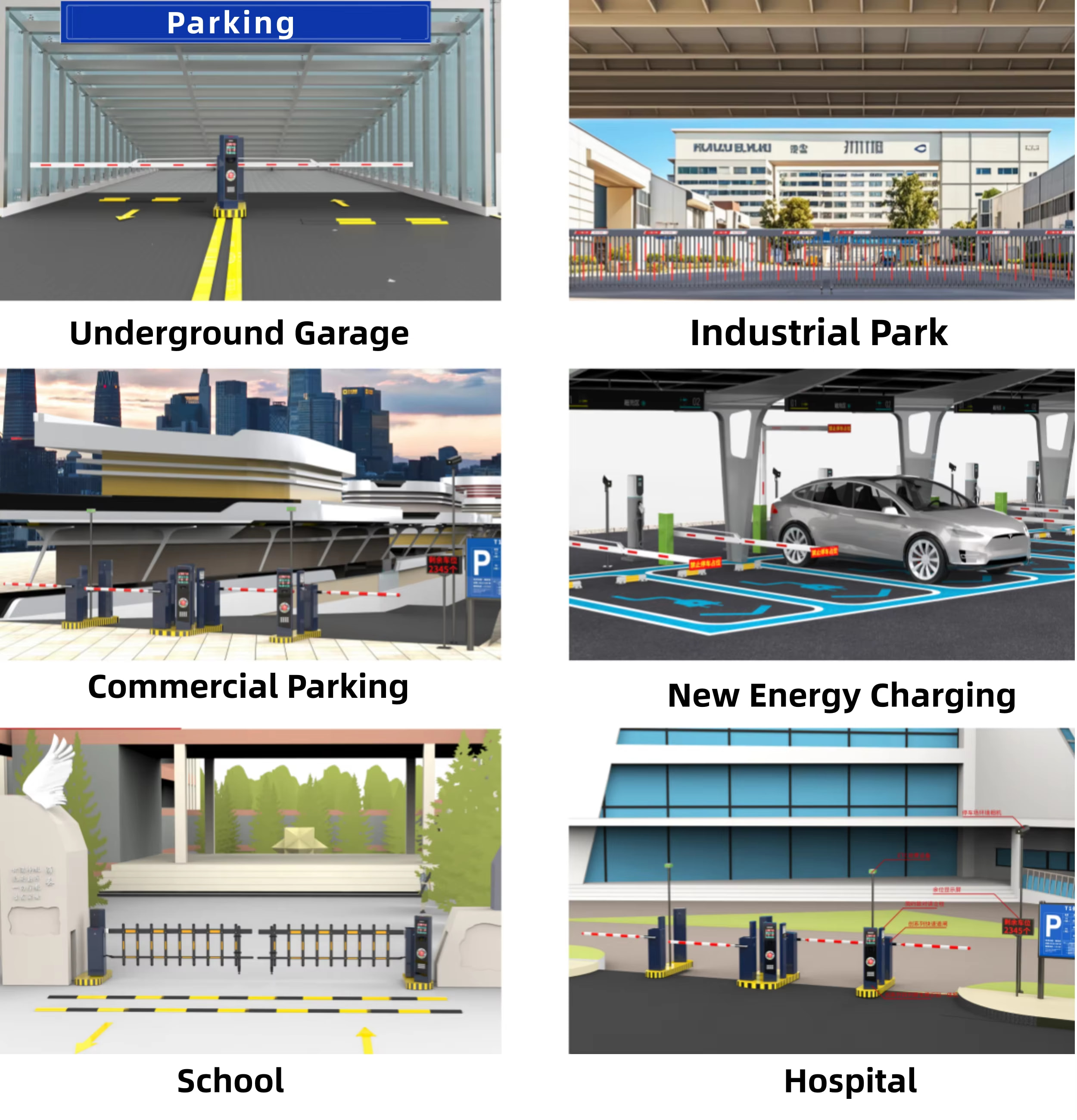

Ideal for shopping malls, corporate office buildings, luxury condominiums, industrial parks, logistics hubs, and commercial complexes across Saudi Arabia.
Product Demonstration & Quality Testing Videos
Watch our industrial-grade automatic drop arm portals and electric security boom gates in operation:

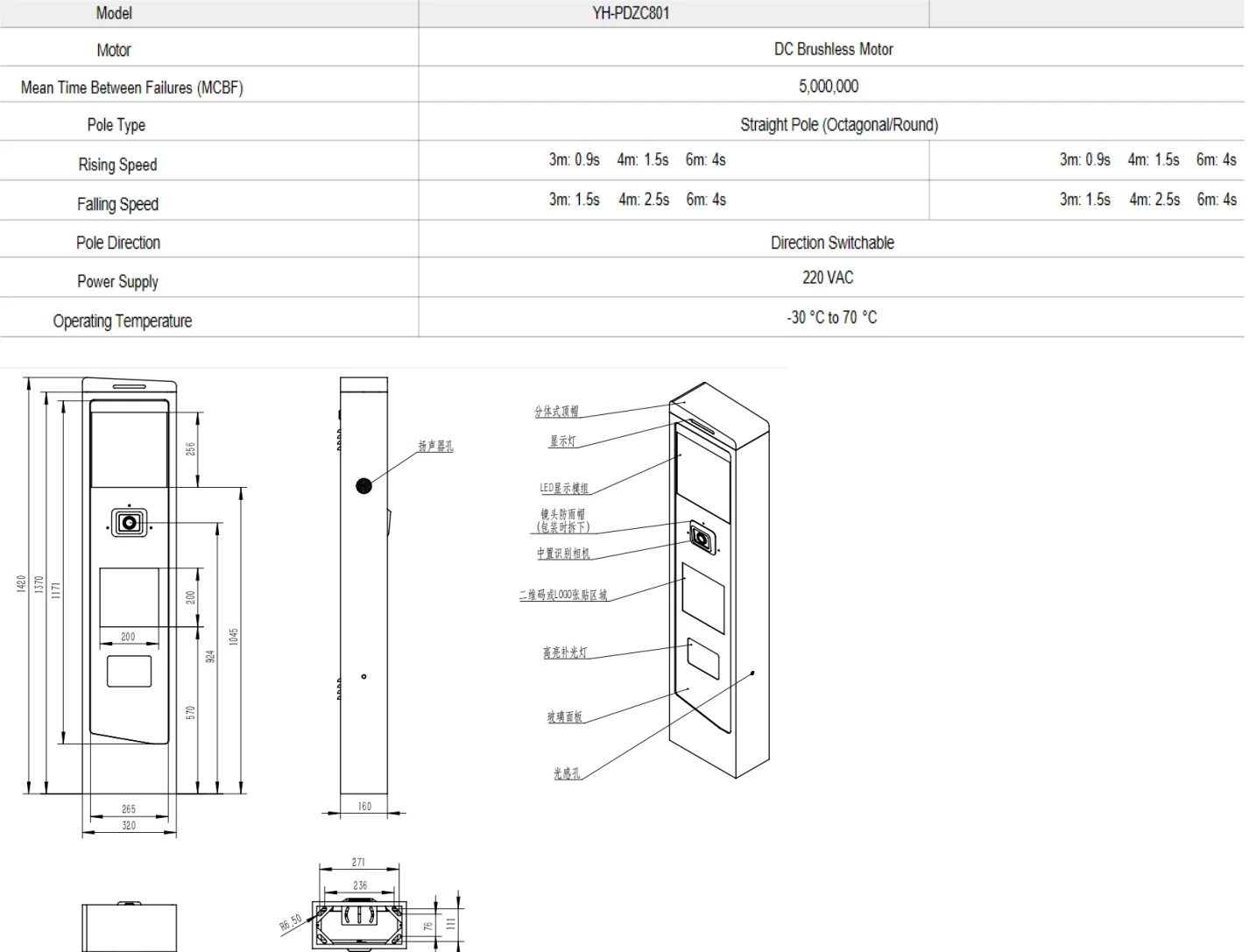

Product Structure Images & Component Views
About Baroxon - Premier Manufacturer of Automatic Parking Barriers
As a leading supplier in perimeter security and access control industries, Baroxon offers full turnkey engineering and manufacturing capabilities for vehicle management, commercial entrance security, and smart parking lot deployments in Saudi Arabia and globally.
Strategic Market Positioning: Specialized engineering focus on high-traffic automatic drop arm operators, multi-rail fence boom gates, underground articulated road blockers, and direct license plate recognition (LPR) camera integration.
Global Deployment Footprint: Proudly supplying highway toll gate operators, corporate facility managers, and commercial perimeter contractors across 200+ countries, including Saudi Arabia, the UAE, and the wider GCC.
Full-Service Project Support: Delivering comprehensive facility layout assessments, detailed CAD design blueprints, professional on-site system hardware instructions, and expert technical consulting.
Practical Structural Design: In-house manufactured tooling and precision cast steel molds facilitate rapid field installation, hassle-free leveling, and minimal long-term maintenance.
Cutting-Edge Technological Innovation: Backed by a vast intellectual property portfolio covering over 100 patents in advanced brushless DC control architecture and barrier safety logic.
Highly Professional Engineering Team: Our core technical R&D experts and plant management bring over 20 years of continuous commercial access control manufacturing experience.
Uncompromising Service Commitment: Instant online sales support response, 2-hour expert technical system diagnosis, and fast complete resolution protocols.

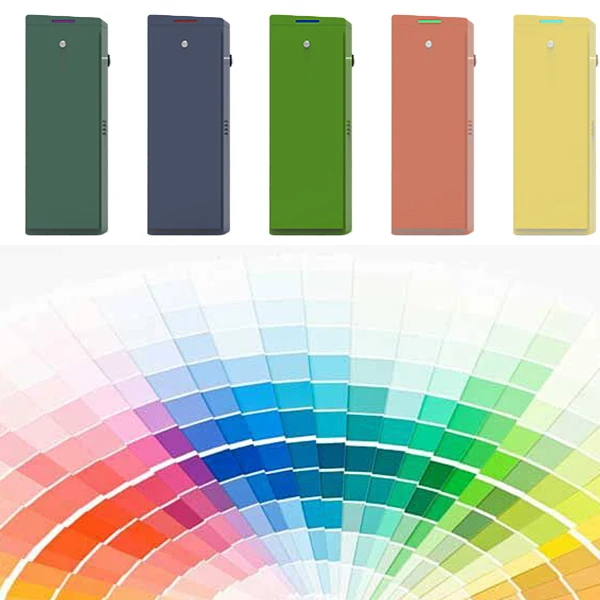

Customization Capabilities & OEM Showroom
Product Mechanical Advantages

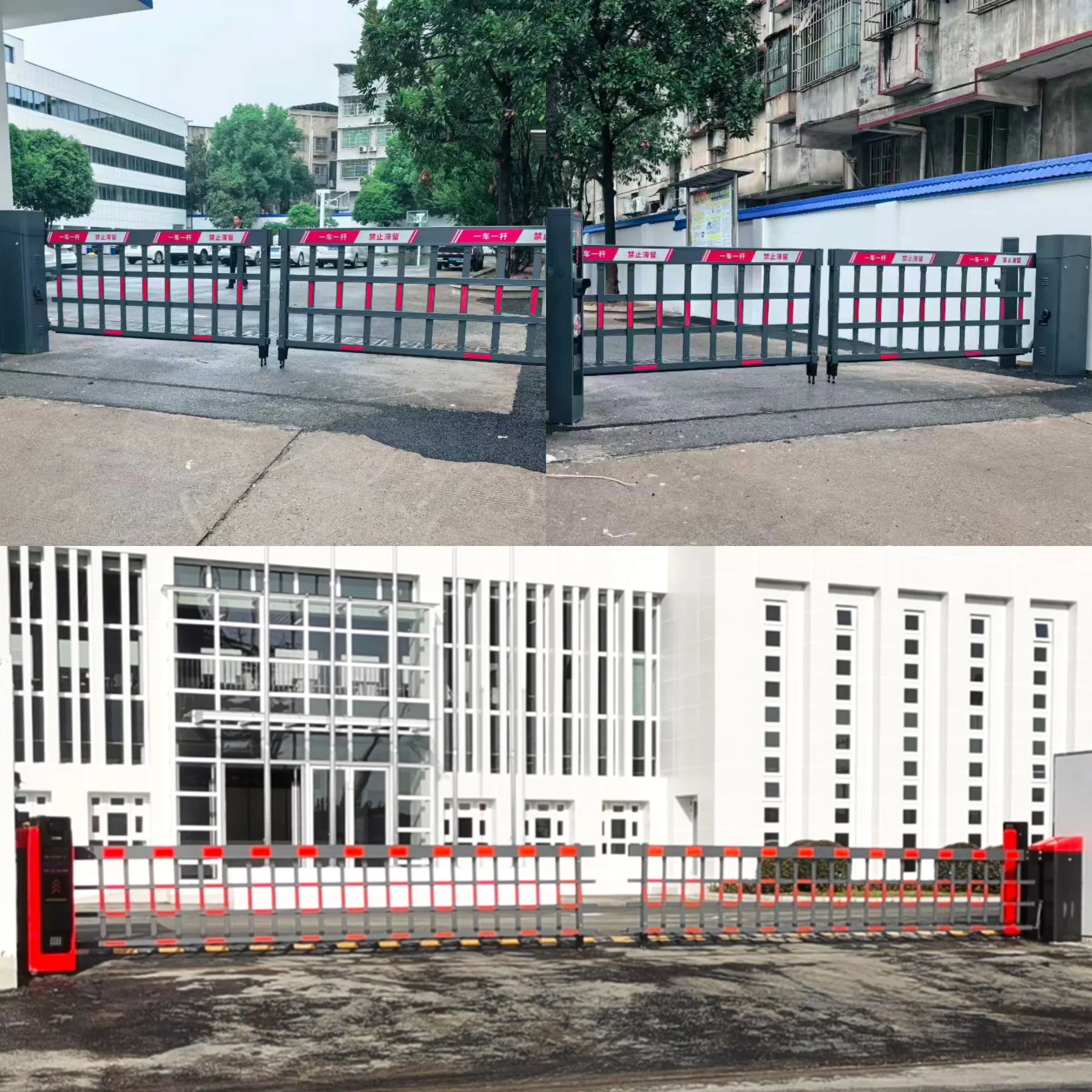

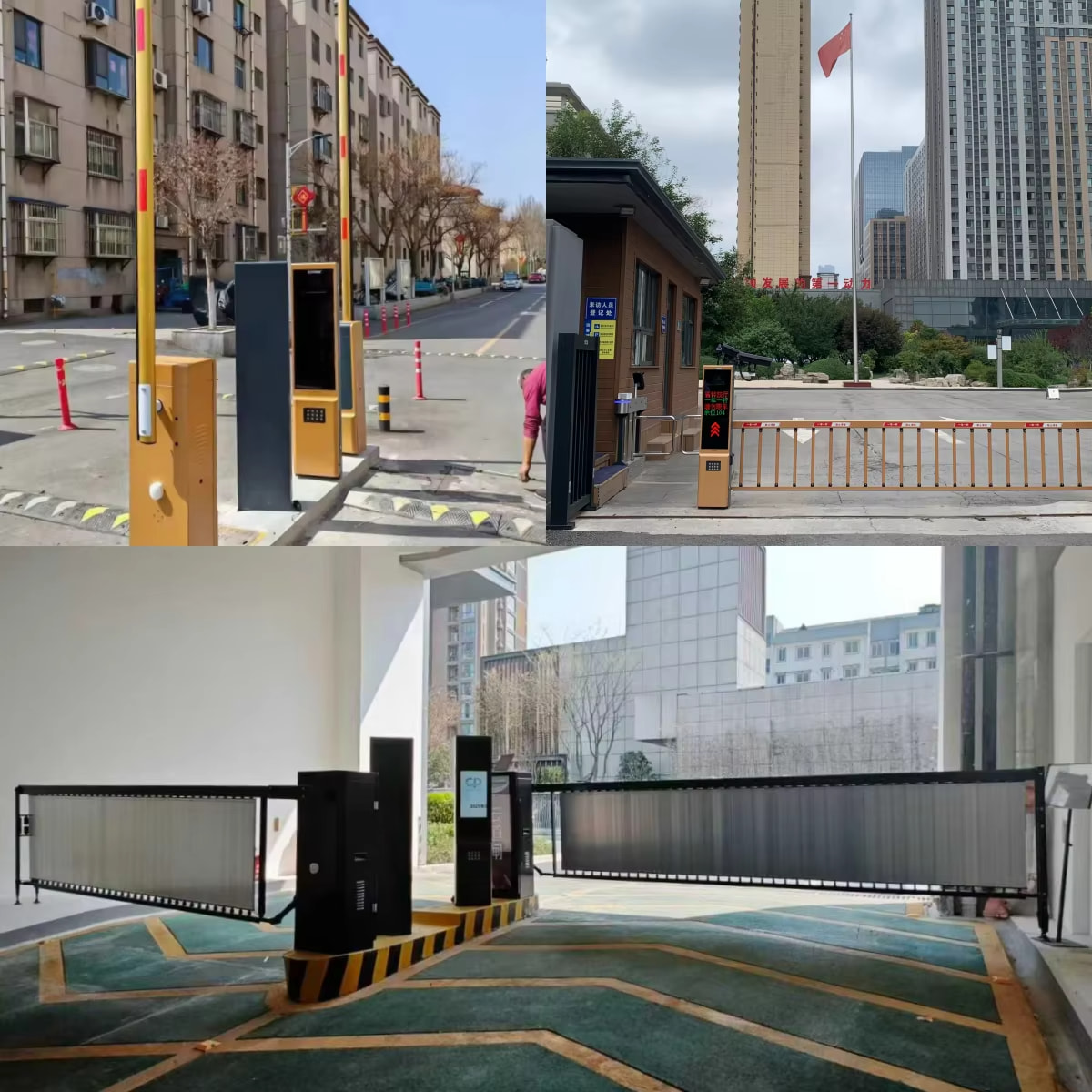

Real-World Project Application Photos
Advanced Manufacturing Factory & Company Overview
Live Traffic Situation Pictures
Competitive Advantages & Certifications
Factory Profile & Extrusion Workshop
Expanded Company Profile & Global Logistics
Frequently Asked Questions (FAQ)
Q1: What are the standard opening and closing speeds for the barrier arm?
A: The actuation speed can be flexibly adjusted from 0.8s to 6s via the main controller board, tailored perfectly for residential condominiums, commercial parking compounds, or industrial facilities.
Q2: Does the system support alternative power sources like backup batteries or solar energy?
A: Yes, our control board supports standard AC power inputs along with auxiliary DC configurations for reliable operation during power anomalies.
Q3: Can this hardware integrate with modern License Plate Recognition (LPR) cameras?
A: Absolutely. Our barrier operators feature comprehensive RS485, Wiegand, and dry-contact relay ports for seamless integration with LPR cameras, UHF RFID readers, and parking management software.
Q4: Is the cabinet fully weather-resistant for outdoor installation in tropical weather?
A: Yes, every unit features an IP54 to IP66 ingress protection rating combined with an anti-UV outdoor powder paint finish to withstand intense tropical downpours and humidity.
Q5: What safety features are embedded to protect vehicles and pedestrians?
A: The system incorporates intelligent obstacle auto-reversal, active safety ground loop detector terminals, photocell sensor ports, and manual clutch overrides for power blackouts.
Q6: What is the certified mechanical lifecycle of the brushless motor assembly?
A: Driven by high-precision sinusoidal mechanisms, our DC brushless motor and core drivetrain achieve over 5 million operational cycles with minimal routine maintenance required.
