Smart WiFi Parking Security System – Automatic Remote Access Control Switch for Long-Distance Smartphone Gate and Barrier Operation
Classification :
PRODUCT DETAILS

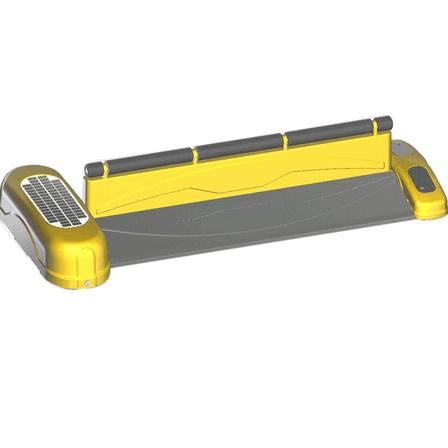

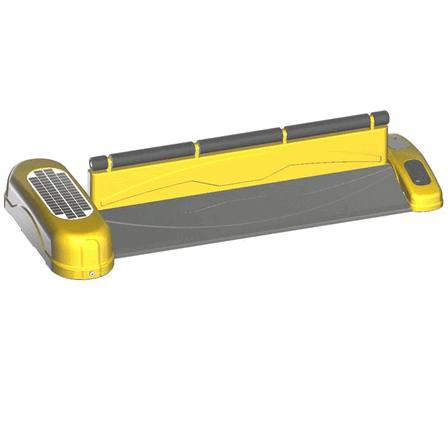

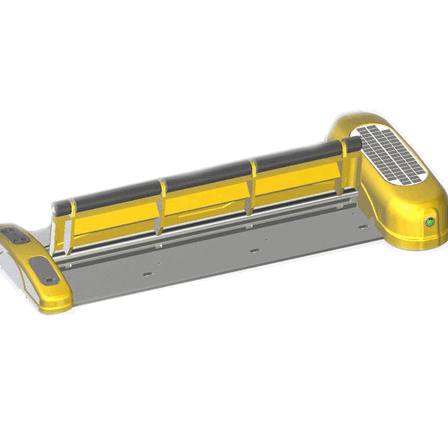

Baroxon Ba-UP-1-C/S: Smart Solar-Powered 4G/Bluetooth Parking Lift Barrier for Singapore Commercial Carpark Security
The Baroxon Ba-UP-1-C/S is an advanced Smart Parking Lock System integrated with multi-band connectivity (4G/LoRa/Bluetooth). It is ideal for premium commercial developments and modern office towers in the CBD and Jurong East. This system features an IP68 protection rating and a heavy load capacity of up to 2000 kg. Powered by solar energy with a battery lifespan of 3-5 years, it ensures continuous, sustainable performance for your Smart Carpark Barrier Equipment.
Key Technical Attributes
| Type | Parking Lift | Load Capacity | 2000 kg(4409.25lb) |
| Brand Name | Baroxon | Model Number | Ba-UP-1-C/S |
| Frequency Band | 4G/ Bluetooth /LoRa (Full band) | Detection Rate | ≥ 99.9% |
| Power Source | Solar Powered (3-5 years) | Protection Class | IP68 |
| Product Size | 998mm*506mm*132mm | Voice Broadcast | Smart Voice Broadcast |
Packaging & Delivery
| Sales Unit | Single item |
| Package Size | 99.8X50.6X13.2 cm |
| Gross Weight | 65.000 kg |
Product Description
Automatic barrier gate for license plate recognition (Ready ALPR/ANPR)
Using a 24V safe DC Brushless motor, our system offers energy savings, eco-friendliness, and extreme durability for commercial developments across Singapore.
Company Profile - Baroxon Singapore Partners
| Partner Name | Baroxon Technology Singapore Division |
| Business Scope | Traffic safety barriers, smart parking equipment, access control systems, facial recognition authentication. |
FAQ - Questions About Baroxon Ba-UP-1-C/S
1. Is Baroxon a professional manufacturer?
Yes, Baroxon is a leading provider of professional barrier gates and parking solutions with over 10 years of industry experience, operating state-of-the-art production facilities in Shandong, China.
2. Does this model support custom (OEM) integration?
Certainly, we provide professional OEM services for international property developments, including custom logo printing on barriers and adjustable arm sizes for various entry points.
3. What is the delivery time for commercial orders?
For 1-50 sets: 3-5 working days; 50-100 sets: 6-10 working days. For bulk or custom projects, we ensure efficient global logistics via sea or air freight.
4. How is technical support handled for this solar parking system?
We have a dedicated R&D and technical support team to assist with device deployment and resolve any operational inquiries promptly.
Professional Key Attributes - Baroxon Smart Carpark Access & Parking Security Infrastructure
| System Type | Professional Carpark Security System / Electronic Parking Lock | Place of Origin | Shandong, China (International Export Standards) |
| Brand Name | Baroxon | Model Number | Ba-CL-04 PRO |
| Warranty | 2 Years (Comprehensive Technical & Maintenance Support) | Sales Unit | Single Item / Commercial Project Bulk Procurement |

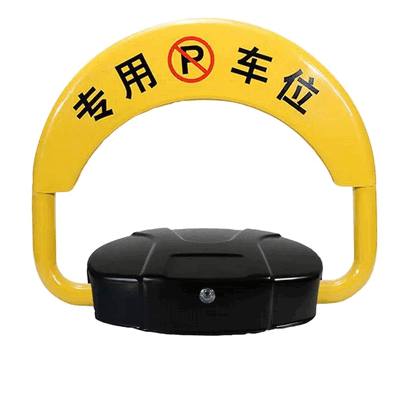

Product Description - Intelligent Wireless Remote Control Smart Parking Lock
Baroxon Smart Remote Control Parking Lock Technical Specifications:
The intelligent automated parking barrier unit engineered by Baroxon incorporates cutting-edge photoelectric sensor positioning along with a heavy-duty anti-collision mechanical chassis architecture. Built with an ergonomic circular profile, this system delivers complete protective coverage, sophisticated component alignment, and high-performance operation. This automatic parking lock system serves as the ultimate solution for estate management, real estate developers, and civil contractors aiming to eliminate unauthorized vehicle bay hijacking across premium residential estates, commercial shopping complexes, hotels, business parks, and multi-storey carparks.
Superior Structural Materials:
- Chassis Base: High-grade cold-rolled structural steel
- 180-Degree Flexible Anti-Collision Warning & Alarm Mechanism
Core Advantages for Commercial Procurement:
* Smart Intelligence: Advanced anti-collision sensor technology combined with a long-range wireless remote control operating up to 20 Meters. An automated buzzer alert triggers instantly if obstruction is detected.
* Low Maintenance: Flexible power configurations featuring rechargeable accumulator batteries or dry cells. Optimized for extreme outdoor weather durability and stability.
* Heavy-Duty Build: Rated IP67 water-resistance. The streamlined circular styling paired with thick structural steel prevents physical deformation and safely supports vehicle loads up to 500kg when lowered.
* Motor Overload Protection: Built-in automatic circuit breaker immediately responds to extreme external resistance, protecting the internal drive motor from electrical short circuits.
* Smart Power Alert: Integrated LED flash indicator and internal acoustic buzzer signal low battery voltage levels requiring recharge cycles.
* Auto-Reset Mechanism: The rocker arm automatically re-extends to its upright position within 3-5 seconds once external load or pressure is cleared.
* Anti-Theft Security: Anchor bolts are concealed underneath the internal locking cover, accessible solely via manual keys held by authorized lot owners.
* Multi-Unit Synchronization: A single wireless remote control transmitter can be programmed to operate multiple Baroxon automatic parking barriers simultaneously.

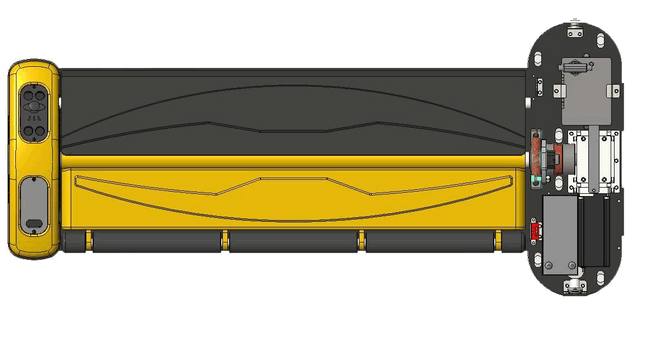

INTERNAL COMPONENT STRUCTURE SCHEMATIC DIAGRAM
1. Rocker Arm Assembly | 2. Alarm Siren Module | 3. Battery Compartment | 4. External Chassis Box Assembly
5. Photoelectric Sensor | 6. Drive Shaft | 7. Anti-Collision Device
8. Gearbox | 9. Electric Motor | 10. Control Mainboard
Maintenance Note: Regularly clear dust, sand, and stone debris around the chassis base perimeter to preserve maximum parking security performance and maximize operational service life.
Technical Specifications - Baroxon Automatic Parking Systems
| Included Accessories | Remote Control*2, Manual Key*2, Solar Cell Panel*1, Expansion Anchor Bolts*3, User Manual*1 | ||
| Operation Method | Wireless Remote Control / Manual Override | Motor Model | KR-540 DC Reduction Motor (High Torque Output) |
| Chassis Material | Thick Cold-Rolled Structural Steel Plate | Physical Dimensions | 400*460*75(mm) or 550*460*90(mm) |
| Base Thickness | 2/3(Connection Section)mm | Casing Thickness | 2.0mm |
| Pipe Wall Thickness | 1.1mm | Gross Weight (G.W) | 8KGS |
| Net Weight (N.W) | 7KGS | Packaging Size | 480*480*90(mm) |
| Motor Output Power | 10W | Operating Time | ≤5s (High-Speed Quick Response) |
| Voltage | 4V | Arm Lift Height | 400mm |
| Working Current | ≤0.85A | Control Range | ≥15m |
| Project Advantages | 1. High compressive resilience: Withstands 3-5 ton vehicle weight loads. 2. Superior moisture sealing: Certified IP67 outdoor rating (Water-Resistant). | ||
Special Project Procurement Explanation
1. Solar Power Integration: The top casing cover features eco-friendly solar panels with integrated smart circuits, capturing solar radiation for continuous autonomous power supply.
2. Sealed Base Chassis: The internal base assembly utilizes insulated aluminum alloy material, delivering outstanding water-resistance and corrosion protection superior to standard iron plates, preventing rust in high-humidity climates.
3. Dual Mode Supply System: Supports hybrid rechargeable lithium cells combined with onboard solar panels for 24/7 unassisted operational cycles without routine manual battery charging.
Video: Installation Guidelines and Vehicle Crush Endurance Testing for Baroxon Ba-CL-04 Automatic Parking Lock in Commercial Estates
F.A.Q - Baroxon Global Customer Service & Support Center
1. Q: Is the Ba-CL-04 unit secure for outdoor installation exposed to heavy tropical rainfall?
A: Yes, it is fully weather-proofed. The entire housing unit is built to industrial IP67 waterproof standards with a sealed aluminum base structure to completely block water seepage, ground moisture, and oxidation rust.
2. Q: How long does the internal battery pack last under typical daily operations?
A: Standard dry cells provide over 1 year of operation. When utilizing the rechargeable accumulator option paired with our Solar Cell panels, energy is continuously replenished via sunlight, delivering virtually maintenance-free service life for high-turnover parking management solutions.
3. Q: Can developers or contractors request custom branding for large-scale building developments?
A: Yes, we provide full OEM custom branding services for civil contractors, real estate developers, and facility managers internationally, along with custom solar panel cover designs tailored to project specs.
4. Q: What happens if an unauthorized vehicle accidentally strikes or drives over the barrier arm?
A: The 180-degree anti-collision protection system instantly triggers an acoustic warning alarm while allowing the mechanical rocker arm to flex downward along the direction of pressure. It automatically resets back to position within 3-5 seconds after the vehicle moves away, protecting internal gears from structural damage.
